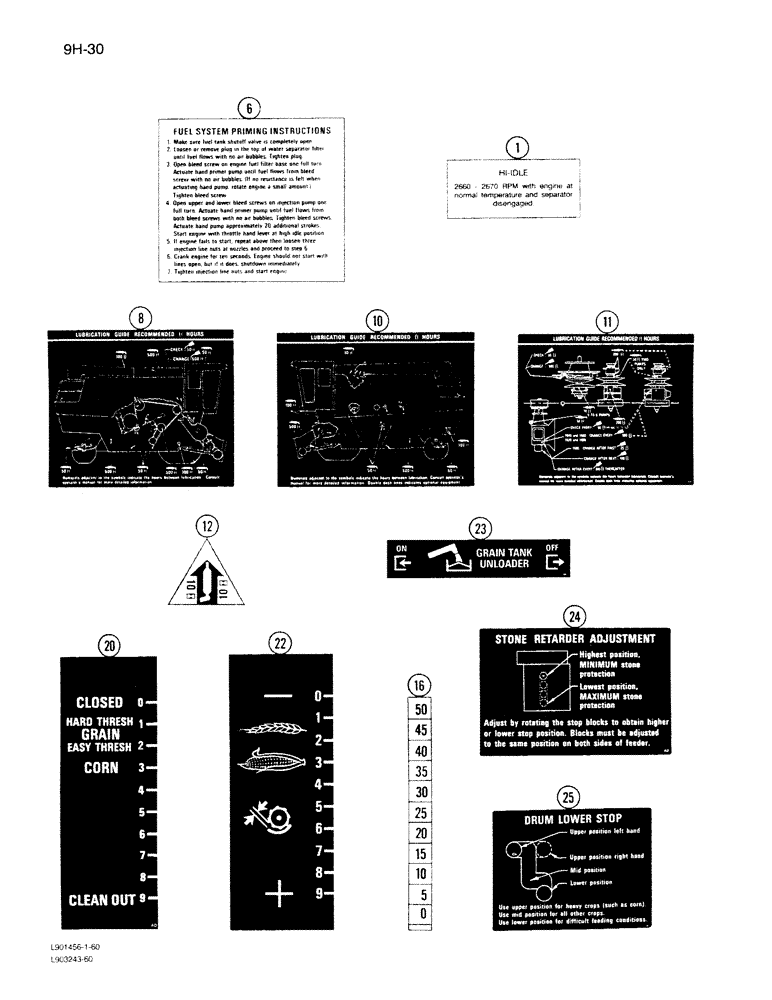

Запчасти Case IH 1620 (9H-30) - DECALS, GENERAL INSTRUCTIONS (12) - CHASSIS

1

1977208C1

DECAL

- engine RPM high idle

1шт.

6

1979263C1

DECAL

- fuel system

1шт.

8

1303092C3

PRODUCT GRAPHIC

DECAL - lubrication, right

1шт.

8

1300181C3

DECAL

- lubrication, right (French)

1шт.

8

1300397C2

DECAL

- lubrication, right (Spanish)

1шт.

10

186672C4

DECAL

- lubrication, left

1шт.

10

1300122C4

DECAL

- lubrication, left (French)

1шт.

10

1300561C4

DECAL

- lubrication, left (Spanish)

1шт.

11

1327687C2

DECAL

- lubrication, top

1шт.

11

1327688C2

DECAL

- lubrication, top (French)

1шт.

11

1327689C2

DECAL

- lubrication, top (Spanish)

1шт.

12

179245C1

DECAL

- lubrication, 10 hour

1шт.

16

1312487C1

PRODUCT GRAPHIC

DECAL - platform leveling indicator

1шт.

20

188217C1

PRODUCT GRAPHIC

DECAL - concave indicator

1шт.

22

1312068C1

DECAL

- concave indicator (If equipped, export only)

1шт.

22

1300129C1

DECAL

- concave indicator (French)

1шт.

22

1300373C1

DECAL

- concave indicator (Spanish)

1шт.

23

185036C1

PRODUCT GRAPHIC

DECAL - unloader

1шт.

23

1300059C1

DECAL

- unloader (French)

1шт.

23

1300343C1

DECAL

- unloader (Spanish)

1шт.

24

184649C1

PRODUCT GRAPHIC

DECAL - stone drum adjustment

2шт.

24

1300110C1

DECAL

- stone drum adjustment (French)

2шт.

24

1300365C1

DECAL

- stone drum adjustment (Spanish)

2шт.

25

184863C2

PRODUCT GRAPHIC

DECAL - drum adjusting

2шт.

25

1300111C2

DECAL

- drum adjusting (French)

2шт.

25

1300389C1

DECAL

- drum adjusting (Spanish)

2шт.
