Запчасти Case IH 1620 (9H-24) - OPERATORS PLATFORM AND SUPPORTS (12) - CHASSIS

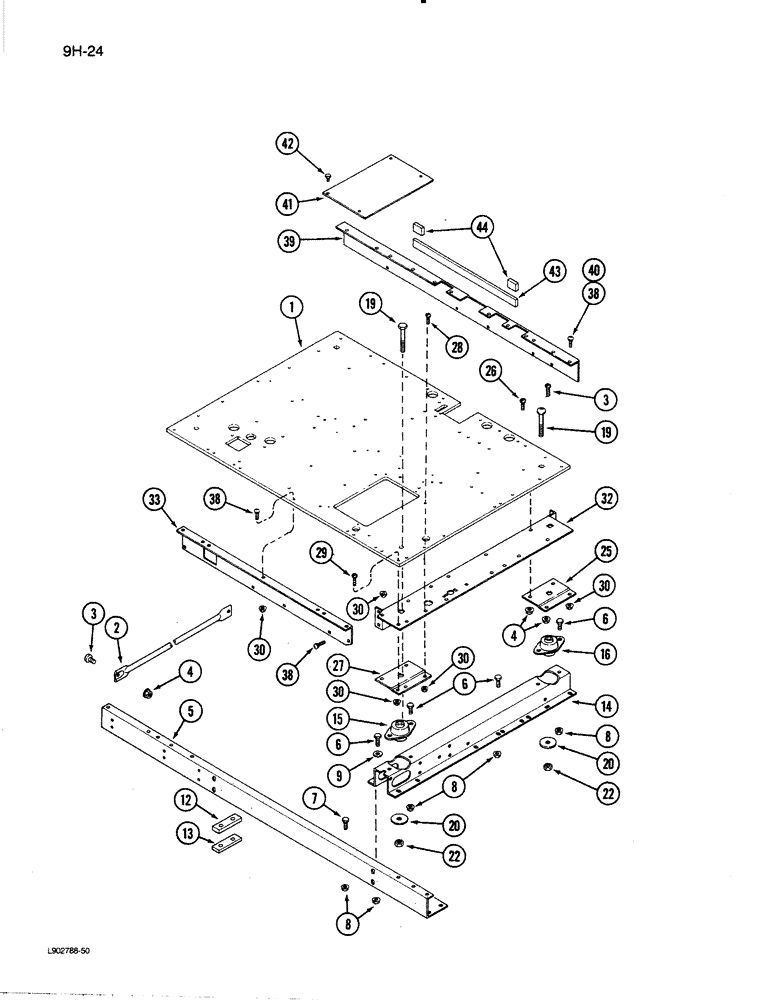

Схема запчастей Case IH 1620 - (9H-24) - OPERATORS PLATFORM AND SUPPORTS (12) - CHASSIS
6
8
25
22
41
6
26
29
14
32
4
1
27
40
28
19
44
4
38
8
42
30
15
22
8
30
39
30
30
30
13
3
7
12
2
19
3
20
33
43
20
6
16
5
38
9
38

Артикул

Название

Примечание

Количество

1

1321937C4

PLATFORM

- plate, operator

1шт.

2

195880C1

ROD

- extension, platform

1шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

5

1301360C2

SUPPORT

- mounting rear

1шт.

6

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

12шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

8

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

16шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

12

193428C1

BAR

- shim, mounting

2шт.

13

195715C1

BAR

- shim, mounting

2шт.

14

195507C6

SUPPORT

- side, platform

1шт.

15

196950C2

MOUNTING PARTS

INSULATOR - vibration, rear mount

1шт.

16

117722C4

INSULATOR

- vibration, front mount

1шт.

16

117722C4GV

INSULATOR

- vibration, front mount

1шт.

19

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex, 3/4 NC x 4-3/4 inch

2шт.

20

196591C1

WASHER

- flat, insulator

2шт.

22

129-108

NUT,3/4"-10, G5

2шт.

25

183668C2

PLATE

- support, right front

1шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

2шт.

27

183678C1

PLATE

- support, right rear

1шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

1шт.

29

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss, 5/16 NC x 1 inch

1шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

20шт.

32

195518C8

SUPPORT

- operators platform, right

1шт.

33

195516C3

SUPPORT

- rear, platform

1шт.

38

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

18шт.

39

1327564C2

SUPPORT

- front

1шт.

40

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

41

193029C2

PLATE

COVER - access, brake

1шт.

42

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - hex tap, 1/4 NC x 1/2 inch

4шт.

43

187885C1

SEALING STRIP

- 26 inch

1шт.

44

187884C1

SEALING STRIP,50mm L

- 2 inch

1шт.

Выбрано товаров: 33
