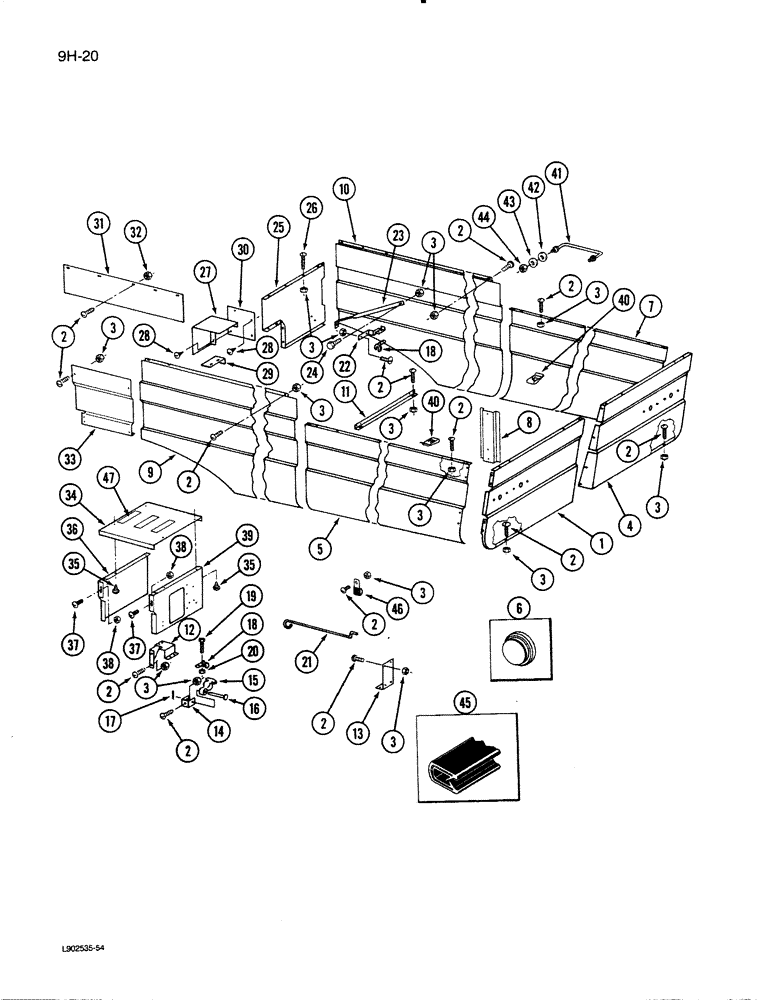

Запчасти Case IH 1620 (9H-20) - SHIELDS AND TRIM (12) - CHASSIS

1

195145C1

SUPPORT

SHIELD - left

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted, 5/16 NC x 1/2 inch

100шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

100шт.

4

195146C1

SUPPORT

SHIELD - right

1шт.

5

186341C1

PANEL ASSY.

SHIELD - rear, left

1шт.

6

147483C1

PLUG

- ho1e

4шт.

7

1321361C2

SHEET

SHIELD - rear, right

1шт.

8

1319563C1

SUPPORT

- hand1e

2шт.

9

186789C1

SHIELD

- front, left

1шт.

10

186790C1

SUPPORT

SHIELD - front, right

1шт.

11

186378C1

ANGLE

- midd1e

2шт.

12

182834C1

SUPPORT

BRACKET - latch, left

1шт.

13

188156C2

SUPPORT

- catch

2шт.

14

188103C1

BRACKET

YOKE - hood anchor

4шт.

15

494307C1

LATCH

HOOK - trim

4шт.

16

22910R1

HEADED PIN

PIN - headed, 1/4 x 1-1/2 inch

4шт.

17

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

18

764071C1

BRACKET

HOOK - trim

4шт.

19

174096C1

BOLT,Hex Serr Flg, #10 - 24 x 3/4"

- hex machine, No. 10 NC x 3/4 inch

8шт.

20

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex, No. 10 NC

8шт.

21

183242C1

ROD

BRACE - door

2шт.

22

188100C1

SUPPORT ASSY.

SUPPORT - latch, right

1шт.

23

183109C1

SUPPORT

- shield, right

1шт.

24

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

25

195268C1

SUPPORT

SHIELD - lower, right front

4шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

4шт.

27

181377C1

SUPPORT

SHIELD - front, right

1шт.

28

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 1/2"

8шт.

29

1303209C1

SUPPORT

ANGLE - shield, right

13шт.

30

181378C1

BAR

SUPPORT - shield, right

1шт.

31

183225C3

SUPPORT ASSY.

COVER - cab filler trim, lower right

1шт.

32

403276R1

NUT

- speed, 5/16 inch

5шт.

33

1338304C1

SHEET

SUPPORT - valve box, left

1шт.

34

1338308C1

COVER ASSY

SUPPORT - valve box cover

1шт.

35

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - hex washer tapping, 3/8 x 3/4 inch

4шт.

36

1338305C1

SHEET

SUPPORT - valve box, front

1шт.

37

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

6шт.

38

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

6шт.

39

1338306C1

SHEET

SUPPORT - valve box, rear

1шт.

40

488837C1

SPRING NUT

- speed, 5/16 inch

2шт.

41

1251832C1

BOLT

HANDLE - assist

1шт.

42

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

43

25710R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

2шт.

44

905263R1

NUT,M12 x 1.75, Cl 10

NUT - hex, 12 mm, Grade 10

2шт.

45

NSS

NOT SOLD SEPARAT

EDGING - panel (Cut 27 inches from bulk roll 196707C1)

1шт.

46

362123R1

CLIP

- retaining

2шт.

47

D55216

PAD,2" x 9"

STRIP - anti-skid

3шт.
