Запчасти Case IH 1620 (9H-18) - FIXED LADDER AND EXTENSION (12) - CHASSIS

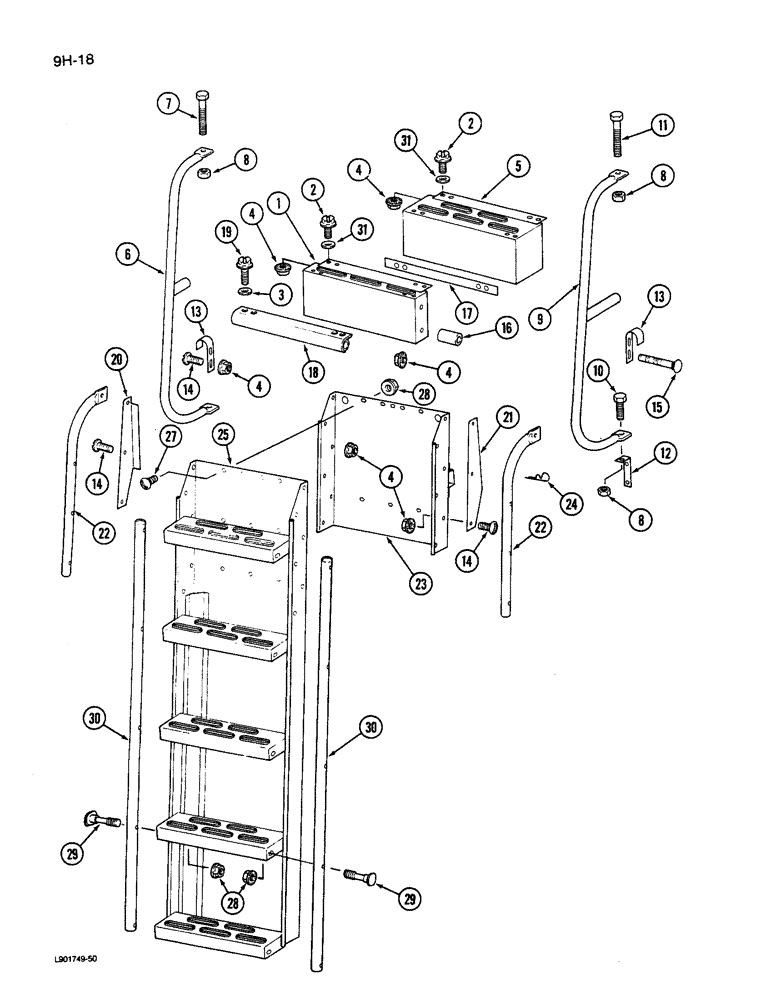

Схема запчастей Case IH 1620 - (9H-18) - FIXED LADDER AND EXTENSION (12) - CHASSIS
31
23
28
7
17
1
24
13
30
25
28
21
4
22
3
5
15
16
14
18
19
29
8
9
4
6
29
2
12
10
8
4
22
27
31
4
13
14
4
20
11
14
2
30
8

Артикул

Название

Примечание

Количество

1

198478C1

SUPPORT

ASSEMBLY - operators platform extension (for 3-1/2 inch extension)

1шт.

2

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange lock, 3/8 NC x 3/4 inch

12шт.

2

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - hex washer tap, 3/8 NC x 3/4 inch

4шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

20шт.

5

198482C1

SUPPORT

ASSEMBLY - operators platform extension (for 7.0 inch extension)

1шт.

6

196625C1

RAIL

ASSEMBLY - front short extension hand (For use with 14 inch and shorter extension)(For use with axle extension)

1шт.

6

196626C1

RAIL

ASSEMBLY - front long extension hand (For use with 17-1/2 inch and longer extension)

1шт.

7

426-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

8

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

4шт.

9

196633C1

RAIL

ASSEMBLY - rear short extension hand (For use with 14 inch and shorter extension)(For use with axle extension)

1шт.

9

196634C1

RAIL

ASSEMBLY - rear long extension hand (For use with 17-1/2 inch and longer extension)

1шт.

10

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

11

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

1шт.

12

196846C1

SUPPORT

- hand rail extension

1шт.

13

196977C1

SUPPORT

- hand rail extension hook

2шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- truss, 3/8 NC x 3/4 inch

10шт.

15

411-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT - round head square neck, 3/8 NC x 2 inch

2шт.

16

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 5/8 x 1 inch

2шт.

17

187712C1

SHIM

- extension

1шт.

18

196832C1

SUPPORT

ASSEMBLY - ladder attaching

1шт.

19

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - hex lock, 3/8 NC x 1 inch

2шт.

20

196836C1

SUPPORT

- ladder side, left

1шт.

21

196837C1

SUPPORT

- ladder side, right

1шт.

22

1317397C1

ROD

- ladder support

2шт.

23

1318804C2

SUPPORT

ASSEMBLY - ladder upper

1шт.

24

520175R1

CLIP

PIN - quick attachable cotter

2шт.

25

1317520C91

LADDER

ASSEMBLY - lower frame (With decal)

1шт.

27

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

3шт.

28

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

13шт.

29

196955C1

BOLT,Curved Hd, 5/16" - 18 x 1.50", Cl 5

- curved, 5/16 x 1-1/2 inch

10шт.

30

1318785C1

TUBE,26.8 mm ID, 28.58 mm OD

- ladder handrail lower

2шт.

31

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

8шт.
