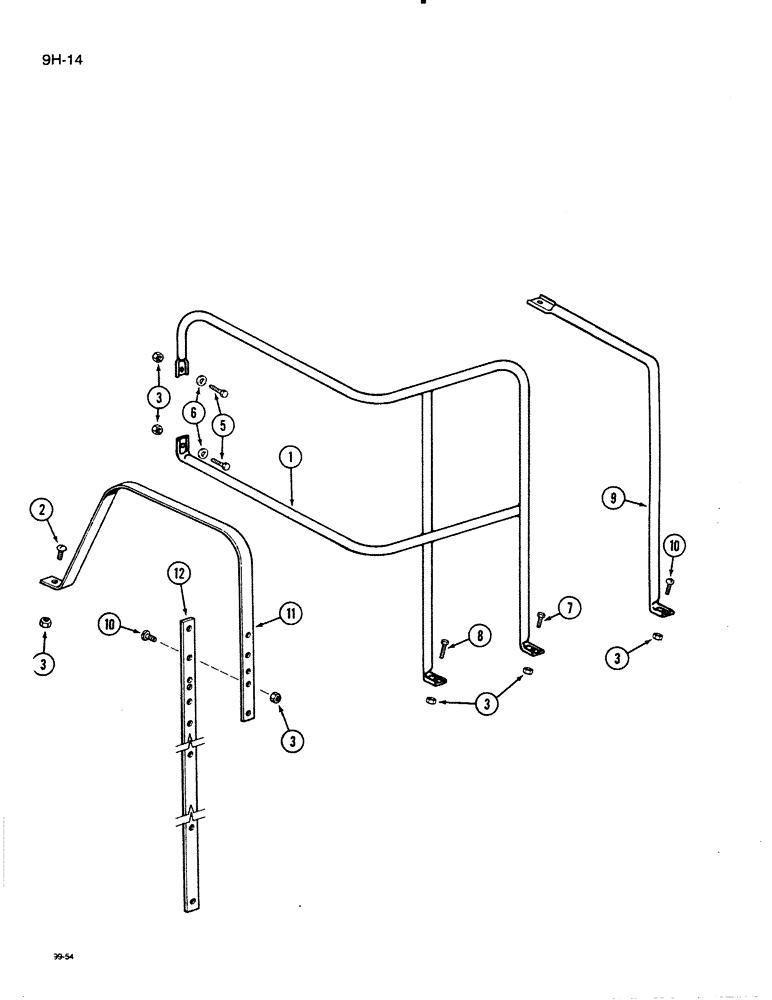

Запчасти Case IH 1620 (9H-14) - SERVICE DECK HAND RAILS (12) - CHASSIS

1

195052C1

RAIL

- deck, left

1шт.

2

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted, 5/16 NC x 1 inch

3шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

10шт.

5

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

2шт.

6

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

2шт.

7

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

8

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex, 5/16 NC x 1-1/4 inch

1шт.

9

1979601C1

RAIL

- deck, right

1шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

2шт.

11

1338059C1

RAIL ASSY.

RAIL - deck, grain tank

1шт.

12

1338058C2

BRACKET

RAIL - support

1шт.
