Запчасти Case IH 1620 (2-04) - COOLANT RECOVERY SYSTEM (01) - ENGINE

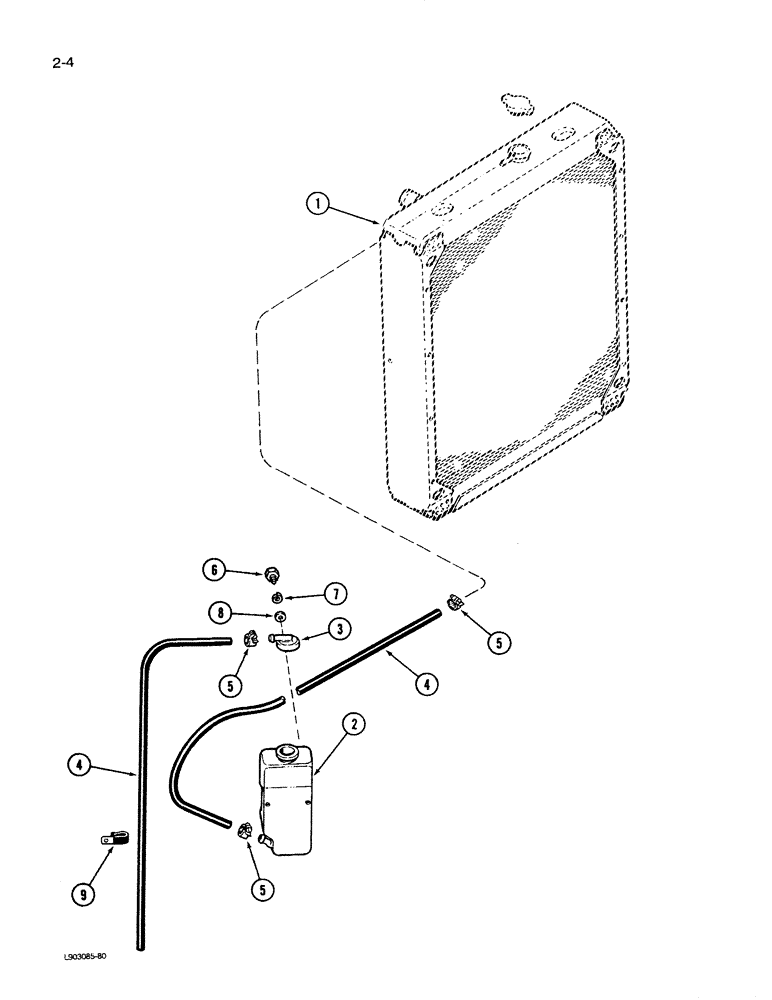

Схема запчастей Case IH 1620 - (2-04) - COOLANT RECOVERY SYSTEM (01) - ENGINE
4
5
9
5
5
8
6
4
3
7
2
1

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

RADIATOR ASSEMBLY - cooling system (See figure 2-2)

1шт.

2

437703C2

TANK

CONTAINER - coolant recovery

1шт.

3

437702C1

CAP

- reservoir tank

1шт.

4

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

7.50 mm ID, 8.30 mm ID x 1000.00 mm, SAE J30 - Reservoir to Radiator Overflow

2шт.

5

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP - hose

2шт.

6

276-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

BOLT - hex, tapping, 1/4 NC x 3/4 inch

3шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - hose retaining

1шт.

Выбрано товаров: 9
