Запчасти Case IH 1620 (9H-08) - SEPARATOR RIGHT SIDE AND SUPPORTS (12) - CHASSIS

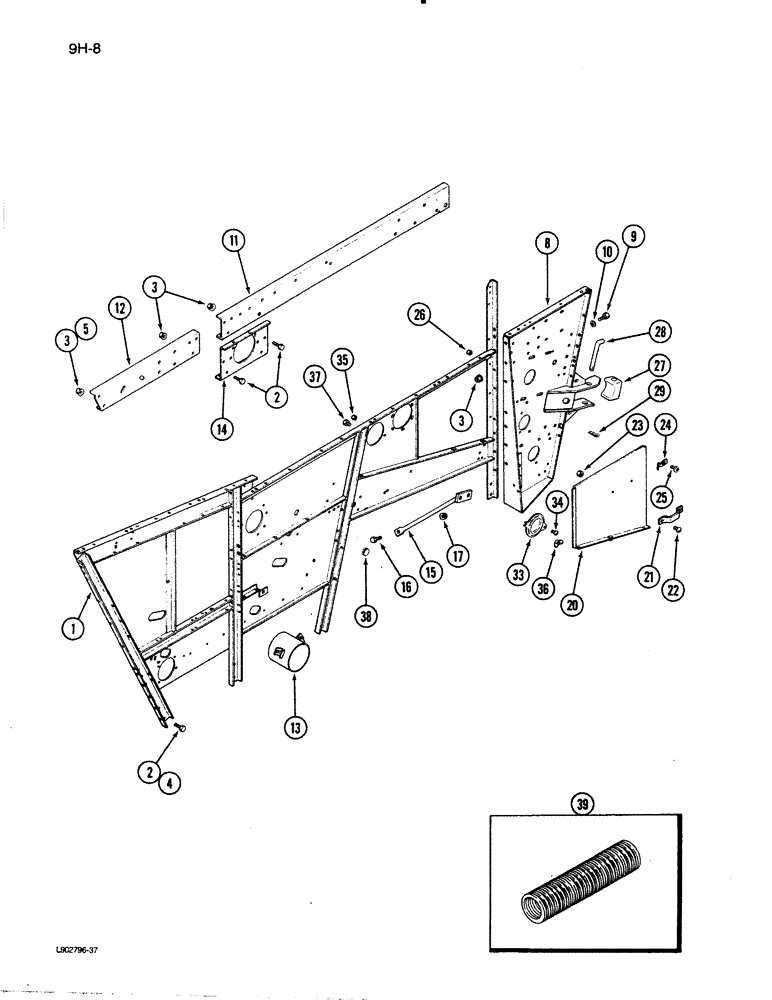

Схема запчастей Case IH 1620 - (9H-08) - SEPARATOR RIGHT SIDE AND SUPPORTS (12) - CHASSIS
36
20
34
1
16
4
8
21
23
15
29
17
2
37
28
11
12
33
27
24
26
10
3
39
22
13
14
25
2
3
5
3
9
35
38

Артикул

Название

Примечание

Количество

1

1979712C1

SIDE ASSY.

SIDE - separator, right

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

17шт.

3

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

17шт.

4

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch

9шт.

5

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC

15шт.

8

194341C5

POST

SUPPORT - post, front right

1шт.

9

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

6шт.

10

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

9шт.

11

185252C1

SUPPORT

CHANNEL - support, front sill

1шт.

12

185255C1

CHANNEL

- support, rear sill

1шт.

13

185253C1

TUBE,180 mm ID

- grain

1шт.

14

185254C1

SUPPORT

CHANNEL - support, middle sill

1шт.

15

181306C1

BRACE

- post, diagonal

1шт.

16

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

3шт.

17

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

3шт.

20

1303100C91

DOOR

- front, right (With decal)

1шт.

21

160638C1

HANDLE

- door

1шт.

22

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

2шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

24

167800C1

CLIP

CLIP - latch, door

4шт.

25

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- pan slotted, No. 10-24 x 1/2 inch

4шт.

26

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10

4шт.

27

185078C1

BLOCK

RETAINER - block, side

1шт.

28

192533C2

ROD

PIN - pivot, retainer

1шт.

29

486830R1

COTTER PIN

PIN - quick, lock

1шт.

33

188315C1

DOOR

- side, separator right

1шт.

34

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss, 1/4 NC x 1/2 inch

1шт.

35

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC

1шт.

36

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

37

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

38

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

39

1319395C1

CONDUIT

- convoluted, 12-1/8 inch

1шт.

Выбрано товаров: 32
