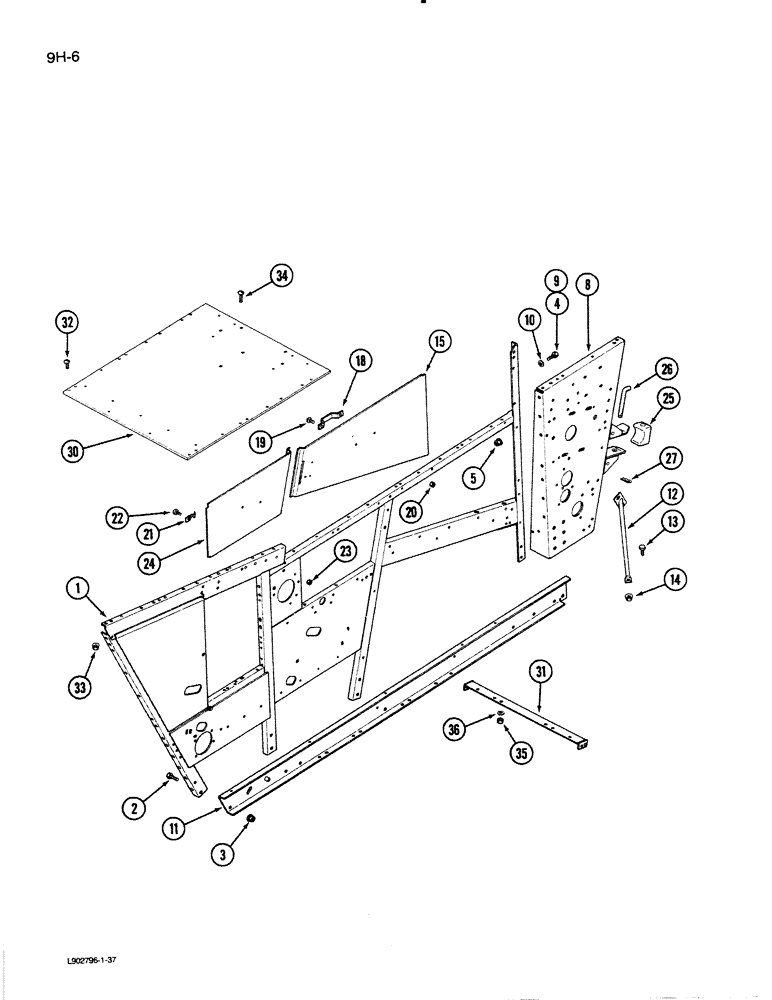

Запчасти Case IH 1620 (9H-06) - SEPARATOR LEFT SIDE AND SUPPORTS (12) - CHASSIS

1

1979711C1

SIDE ASSY.

SIDE - separator, left

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

9шт.

3

131-920

NUT - hex flange lock, 1/2 inch NC

9шт.

4

426-1018

BOLT

- hex, 5/8 NC x 1-1/4 inch, Grade 8

9шт.

5

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC

15шт.

8

194340C7

SUPPORT ASSY.

SUPPORT - post, left front

1шт.

9

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

6шт.

10

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

9шт.

11

185054C1

SUPPORT

CHANNEL - support

1шт.

12

181306C1

BRACE

- post, diagonal

1шт.

13

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

3шт.

14

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

3шт.

15

1303098C91

DOOR

- separator, left front (With decal)

1шт.

18

160638C1

HANDLE

- door, front

2шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

4шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/8 inch NC

4шт.

21

167800C1

CLIP

CLIP - retainer, door

9шт.

22

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- pan slotted, No. 10-24 x 1/2 inch

9шт.

23

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10

9шт.

24

1303099C91

DOOR

- separator, left center (With decal)

1шт.

25

185078C1

BLOCK

- retainer

1шт.

26

192533C2

ROD

PIN - pivot, block

1шт.

27

486830R1

COTTER PIN

PIN - quick

1шт.

30

1979713C1

SUPPORT

SHIELD - cover

1шт.

31

186062C1

SUPPORT ASSY.

ANGLE - support, deck

1шт.

32

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

10шт.

33

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange 1ock

12шт.

34

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss, 3/8 NC x 1 inch

4шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

492-11038

LOCK WASHER,3/8"

2шт.
