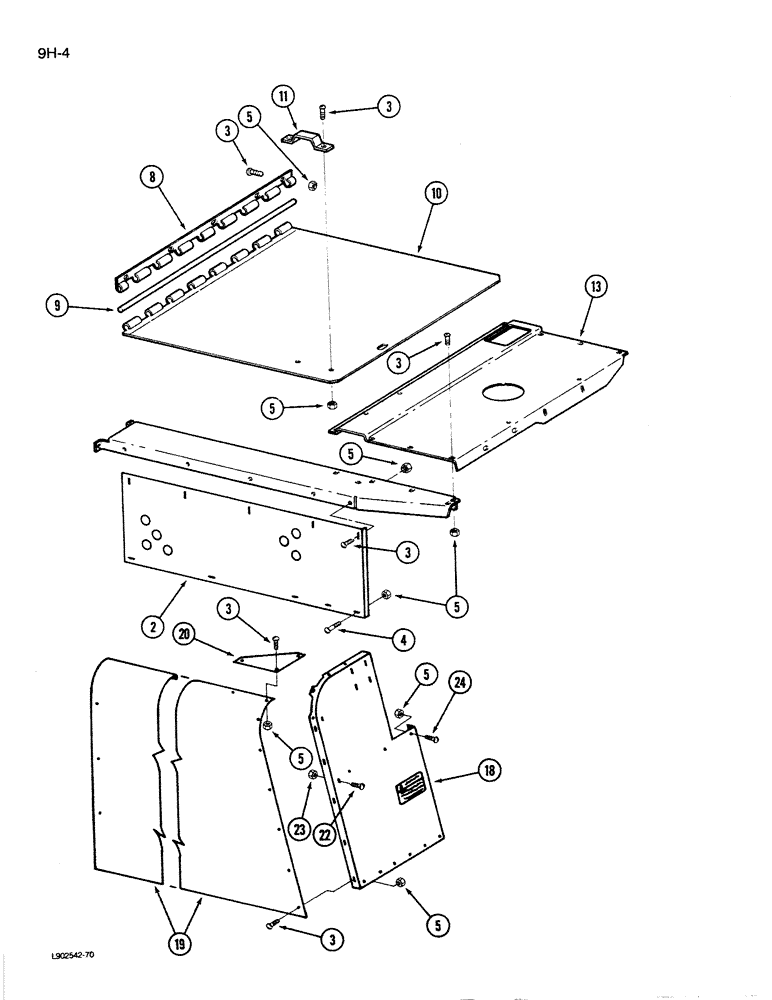

Запчасти Case IH 1620 (9H-04) - ENGINE SHIELDS (12) - CHASSIS

1

1979715C2

SUPPORT

- hood (With decal)

1шт.

2

195286C1

SUPPORT

SHEET - cover

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted, 5/16 NC x 1/2 inch

54шт.

4

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted, 5/16 NC x 1 inch

2шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

57шт.

8

1346978C1

HINGE

- cover

1шт.

9

1346979C1

STEM

ROD - hinge

1шт.

10

1347018C2

DOOR ASSY.

DOOR ASSEMBLY - rotor

1шт.

11

160638C1

HANDLE

- door

1шт.

12

1317844C1

SHEET

- trim, right

1шт.

13

1346960C1

COVER

SUPPORT - engine

1шт.

14

1321891C1

SUPPORT

- air cleaner

1шт.

15

1329866C1

PLATE ASSY.

PLATE - chute

1шт.

18

195262C1

SUPPORT ASSY.

FILLER - shield, rear left

1шт.

19

195264C2

SHIELD

- trim, upper rear left

1шт.

20

186419C1

PLATE

- reinforcement, upper

1шт.

22

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

3шт.

23

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

3шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

3шт.
