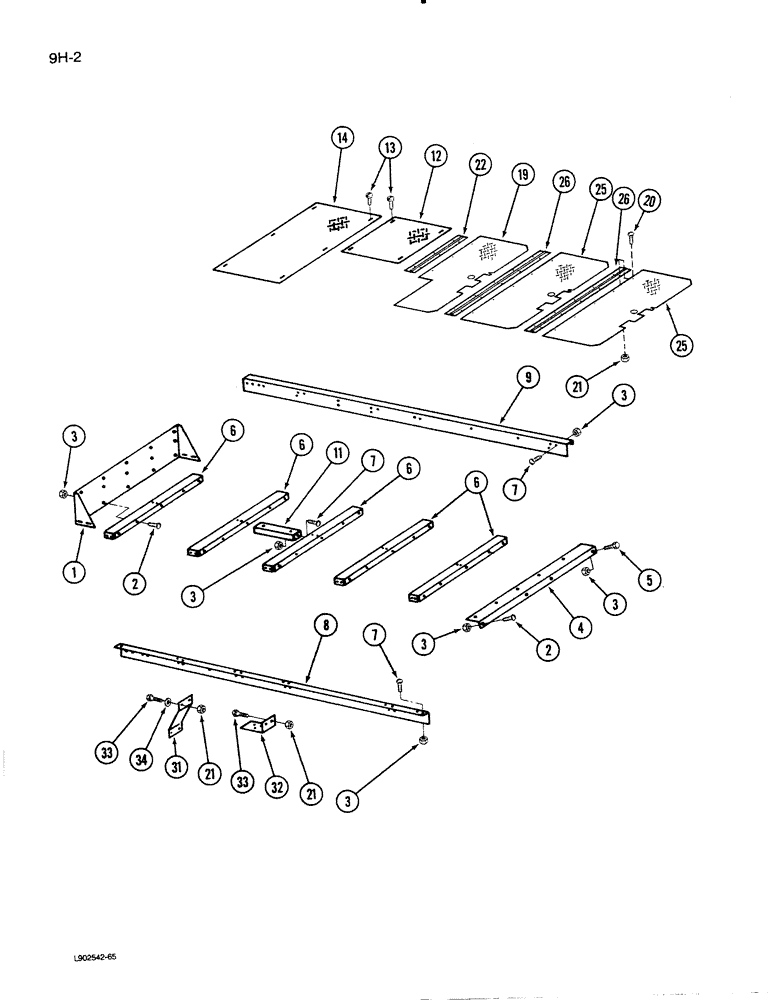

Запчасти Case IH 1620 (9H-02) - ENGINE SERVICE DECK (12) - CHASSIS

1

193435C2

SUPPORT

- deck

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted, 5/16 NC x 1/2 inch

8шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

34шт.

4

183107C3

SUPPORT

- deck, rear

1шт.

5

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

6

192959C5

CHANNEL

- deck

5шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

25шт.

8

188368C2

ANGLE

- deck, left

1шт.

9

192960C4

CHANNEL

- deck

1шт.

11

194461C1

SUPPORT

CHANNEL - deck

1шт.

12

194455C2

PLATE

- compartment

1шт.

13

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - tapping, 1/4 x 1/2 inch

10шт.

14

194456C2

PLATE

- compartment

1шт.

19

1979610C1

DOOR

- service deck

1шт.

20

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted, 1/4 NC x 1/2 inch

26шт.

21

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, 1/4 inch NC

26шт.

22

1979611C1

HINGE

- service door

1шт.

25

1977155C1

DOOR

- service deck

2шт.

26

186695C1

HINGE

- door

1шт.

31

187506C1

SUPPORT

- valve

1шт.

Used with feeder and separator clutch valve, 187505C91.

1шт.

32

1301037C1

ANGLE

SUPPORT - valve

1шт.

Listed with feeder and separator clutch valve, 1301171C91.

1шт.

33

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

34

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 5/32 inch

2шт.
