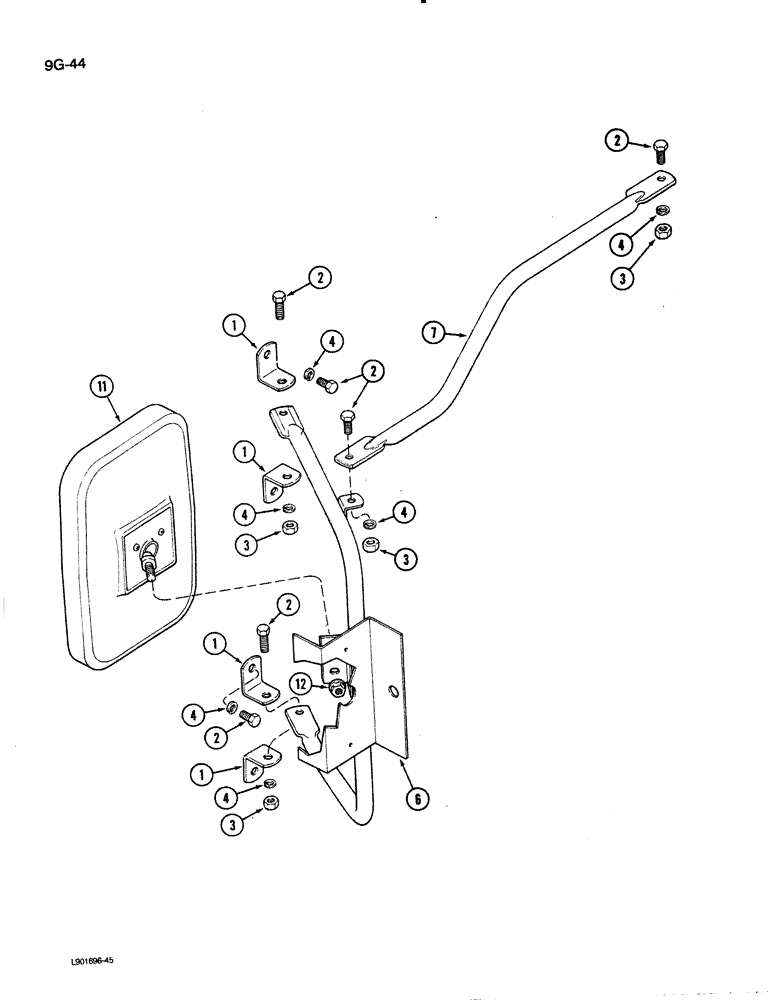

Запчасти Case IH 1620 (9G-44) - REAR VIEW MIRROR, RIGHT (10) - CAB & AIR CONDITIONING

1

1281917C1

ANGLE

- mirror

4шт.

2

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

8шт.

3

329-105

NUT,5/16"-18, G8

8шт.

4

392-11031

LOCK WASHER,5/16"

5/16"

8шт.

6

1281914C1

TUBE,438.5, 246.7 mm Length

- mirror, right

1шт.

7

1281916C2

TUBE

- brace, right

1шт.

11

1283403C1

MIRROR

- rear view, right

1шт.

12

3164622R1

LOCK NUT

- flange lock, 10 mm

1шт.
