Запчасти Case IH 1620 (9G-40) - COMPRESSOR MOUNTING (10) - CAB & AIR CONDITIONING

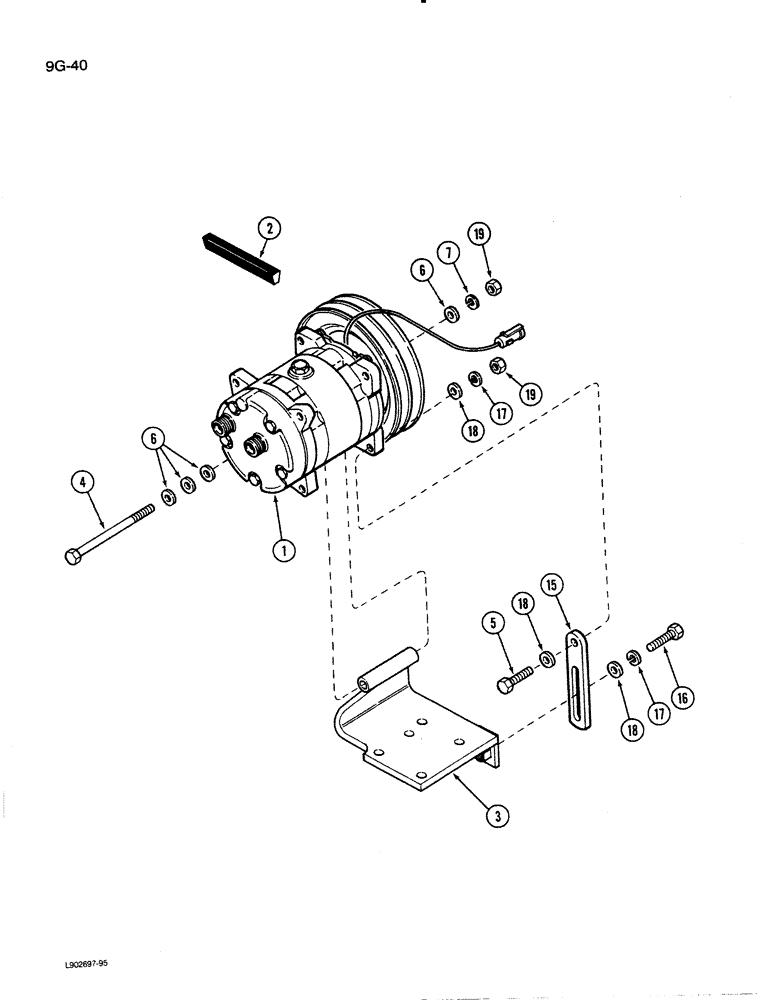

Схема запчастей Case IH 1620 - (9G-40) - COMPRESSOR MOUNTING (10) - CAB & AIR CONDITIONING
3
16
16
18
19
15
6
6
2
1
17
18
7
5
17
19
4

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

COMPRESSOR - air conditioning (See figure 9G-42)

1шт.

2

1250587C1

V-BELT,0.50" W

Drive, Compressor 0.50" W

1шт.

3

A189290

SUPPORT

- compressor mounting

1шт.

4

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 mm - 130 mm

1шт.

5

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

7

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

4шт.

15

84716C1

SUPPORT

STRAP - adjusting, compressor

1шт.

16

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

17

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

3шт.

18

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

19

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

2шт.

19

832-41310

NUT,M10 x 1.5, Cl 10

NUT, LOCK, M10 x 1.5, Cl 10

1шт.

Выбрано товаров: 13
