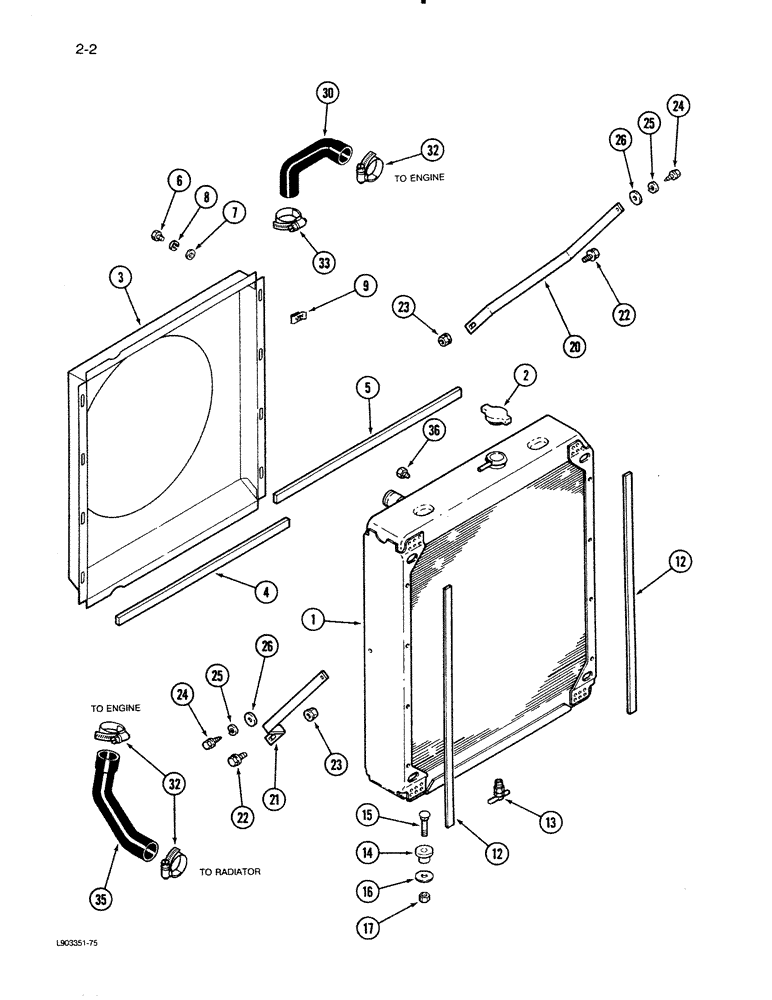

Запчасти Case IH 1620 (2-02) - RADIATOR AND ATTACHING PARTS (01) - ENGINE

1

A189067

RADIATOR

ASSEMBLY - cooling system, Includes: Ref. 2

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

1346931C1

GUARD

SHROUD - fan

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - lower radiator to shroud, 730 mm long (Order 1319664C3, Serial Range: cut-length)

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - upper radiator to shroud, 787 mm long (Order 1319664C3, Serial Range: cut-length)

2шт.

6

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

8шт.

7

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

8шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

9

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16 inch NC

8шт.

12

NSS

NOT SOLD SEPARAT

SEAL - radiator to air chute, 875 mm (Order 195917C2, Serial Range: cut-length)

1шт.

13

86982771

VALVE

- pipe, 1/4 inch, drain cock

1шт.

14

R29799

SHOCK ABSORBER

ABSORBER - radiator

2шт.

15

111-422

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 2", G2

2шт.

16

23043R1

WASHER

- flat, 15/32 x 1-3/4 x 7/64 inch

4шт.

17

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

20

1346927C1

SUPPORT

- radiator, left

1шт.

21

1346928C1

SUPPORT

- radiator, right

1шт.

22

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

23

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

24

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

26

134238R1

WASHER

- flat, 11/32 x 1 x 3/64 inch

2шт.

30

1346930C1

HOSE,45.00 mm ID, 50.80 mm ID x 309.9 mm, SAE 20R4

- engine outlet

1шт.

32

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP - hose retaining

3шт.

33

1979481C1

HOSE CLAMP,2.25/3.125 HD Worm, W/liner

CLAMP - hose retaining

1шт.

35

1346929C1

HOSE

- engine inlet

1шт.

36

20988R1

PLUG,Hex Hd, 1/4"-18, Brass

- hex head pipe, 1/4-18 inch PT

1шт.
