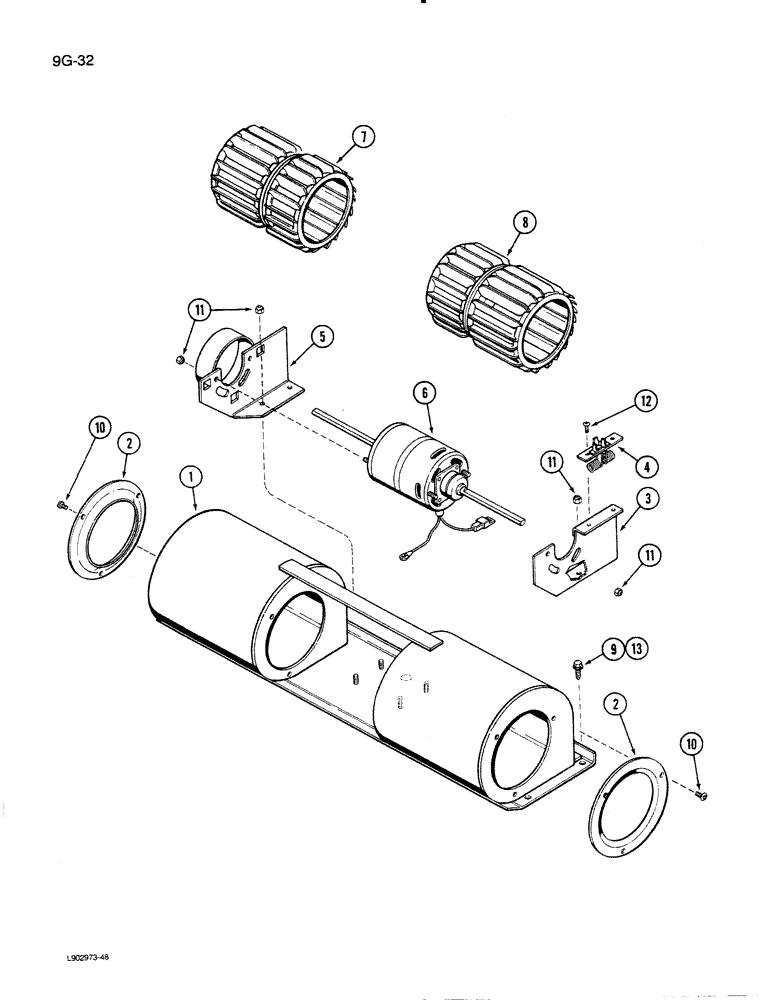

Запчасти Case IH 1620 (9G-32) - BLOWER ASSEMBLY (10) - CAB & AIR CONDITIONING

1255878C91

BLOWER ASSY.

BLOWER ASSEMBLY - pressurizer, Includes: Ref. 1 - 13

1шт.

1

117785C2

HOUSING ASSY.

HOUSING ASSEMBLY - weldment

1шт.

2

65010C1

RETAINER

- inlet

2шт.

3

1262098C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - resistor

1шт.

4

1255876C1

RESISTOR

ASSEMBLY

1шт.

5

1344176C1

SUPPORT

BRACKET - motor mounting

1шт.

6

142990C2

MOTOR, ELECTRIC

MOTOR - fan, 12 volt

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1620 w/S/N JJC0032630 & Aft., Reman For New P/N's 142990C2 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

7

539018R2

FAN

- wheel, left

1шт.

8

539077R2

FAN

- wheel, right

1шт.

9

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

7шт.

10

260-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head, No.10-16 x 3/8 inch

6шт.

11

66299C1

NUT

- hex Keps, No. 10-32

8шт.

12

261-2436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW - pan head, No. 6 x 3/8 inch

2шт.

13

24201R1

SELF-TAP SCREW,1/4" - 14 x 1"

SCREW - hex tapping, 1/4-14 x 1 inch

1шт.
