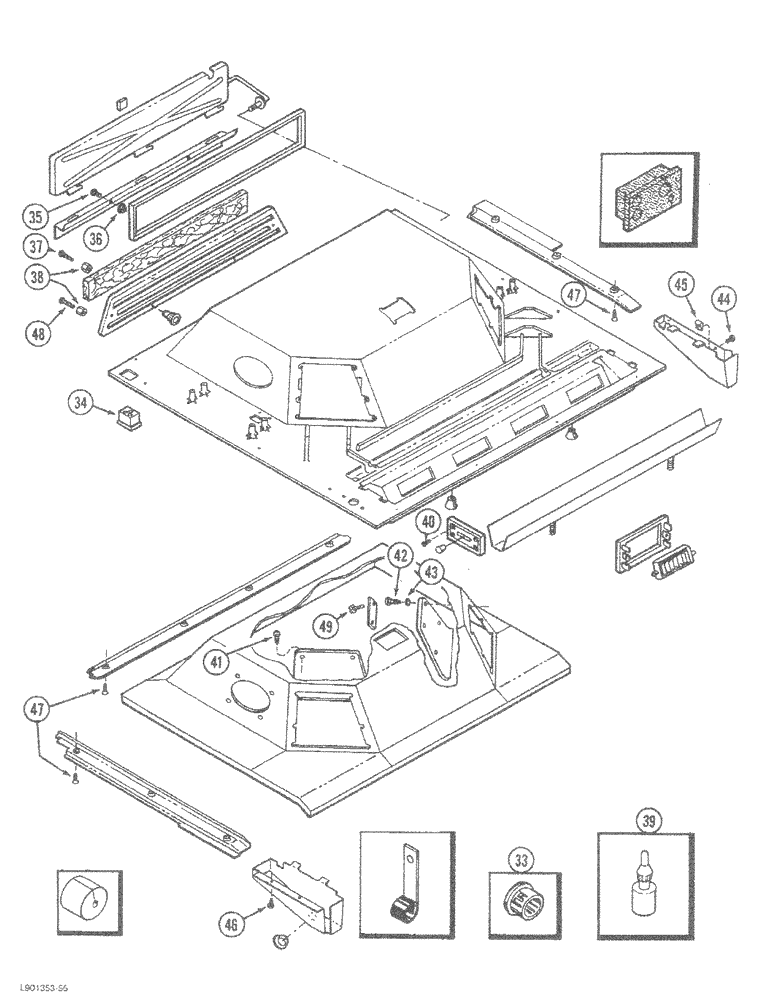

Запчасти Case IH 1620 (9G-26) - CAB HEADLINER, (CONT) (10) - CAB & AIR CONDITIONING

33

353-406

PLUG,Dome, .625" hole, Nylon

- plastic 15.8 mm diameter hole

2шт.

33

353-411

PLUG,Dome, 1.000" hole, Nylon

(25.4 mm) (Heater only) Dome, 1.000" hole, Nylon

1шт.

33

353-404

PLUG,Dome, .500" hole, Nylon

(12.7 mm) (Heater only) Dome, .500" hole, Nylon

1шт.

34

1327770C2

SEAL

- cab harness hose, right rear

1шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 x 3/4 inch

2шт.

36

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

2шт.

37

27729R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/2"

SCREW - tapping, 1/4 x 1-1/2 inch

4шт.

38

1250628C2

SPACER

- grille spacer

6шт.

39

117995C1

PACKAGE

FASTENER KIT - plastic toggle (Includes fasteners)

1шт.

40

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW - poly seal tapping, No, 8-18 x 1-3/4 inch

4шт.

41

28622R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 3/4"

SCREW - No. 8-18 x 1-3/4 inch

12шт.

42

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - tapping, No. 10-16 x 3/8 inch

2шт.

43

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

- flat, 13/64 x 3/4 x 3/64 inch

2шт.

44

260-13412

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

SCREW - pan head, No. 8-18 x 3/4 inch

2шт.

45

445435

SPRING NUT,U, #10-24

- No. 8-18 U spring

2шт.

46

260-1346

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - pan head, No. 8-18 x 3/8 inch

2шт.

47

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

10шт.

48

27687R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 3/4"

SCREW - tapping, 1/4 x 1-5/8 inch

2шт.

49

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head cross slotted tapping, No. 10 x 3/4 inch

2шт.

49

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head self tapping, No. 10-16 x 3/8 inch

2шт.
