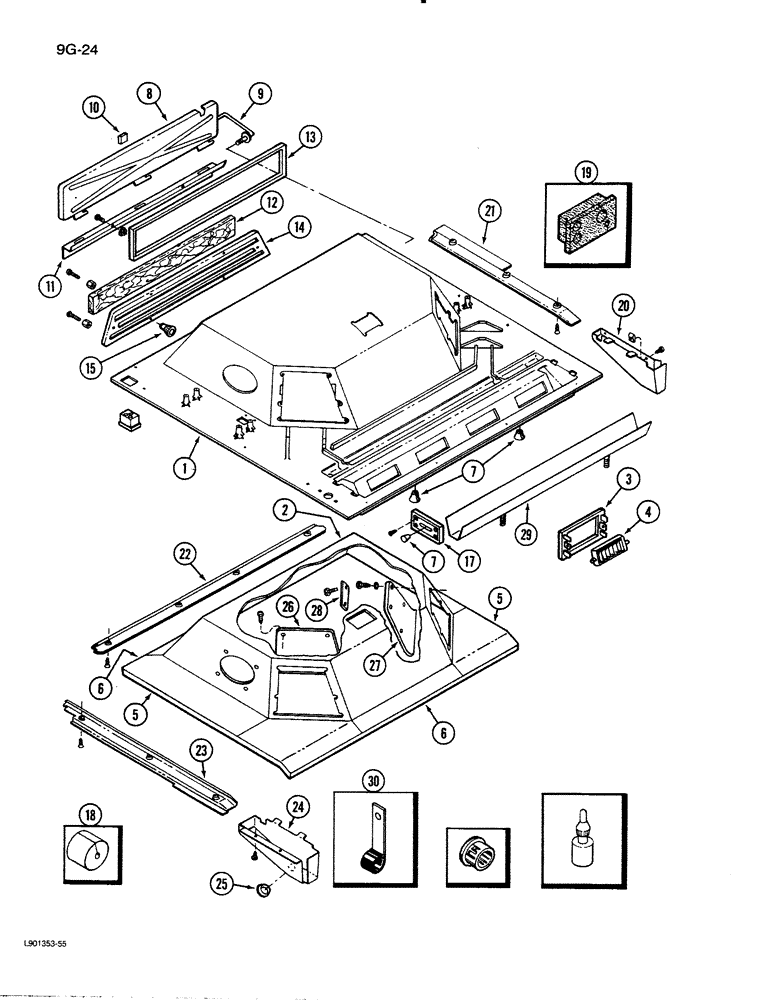

Запчасти Case IH 1620 (9G-24) - CAB HEADLINER (10) - CAB & AIR CONDITIONING

1

1329973C92

PANEL

HEADLINER ASSEMBLY - cab, Includes: Ref. 2

1шт.

2

1329975C2

INSULATOR

- accoustical, headliner

1шт.

3

1280402C1

PANEL

- louver frame

4шт.

4

109227C1

VENT

- 1ouver

4шт.

5

NSS

NOT SOLD SEPARAT

SEAL - headliner sides, 54 inch (Order 182747C1)

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - headliner front and rear, 56-3/4 inch (Order 182747C1)

1шт.

7

1321356C1

KNOB

- control

3шт.

8

117621C2

DOOR

- recirculating air

1шт.

9

1276293C2

ROD

- control

1шт.

10

118345C1

BUMPER

- recirculating door, attach to roof assembly

1шт.

11

111666C2

SUPPORT

- door

1шт.

12

109240C1

CAB FILTER

FILTER - air recircuiation

1шт.

12

143481C92

CAB FILTER

FILTER KIT - air intake

1шт.

12

87543798

CAB FILTER

Charcoal cab filter

1шт.

13

84157C1

SEAL

- recirculation door 39-13/32 inch

2шт.

14

109282C2

SIEVE

GRILLE - recirculating, air filter

1шт.

15

97135C1

KNOB

- recirculation panel

6шт.

17

1321259C1

PANEL

- control trim

1шт.

18

1283457C3

SEAL

- monitor harness, right front and rear

1шт.

19

1283459C3

GROMMET

SEAL - left rear corner

1шт.

20

1276270C1

PANEL

- headliner trim, left front

1шт.

21

1280092C1

PANEL

- headliner trim, left rear

1шт.

22

1276235C2

PANEL

- headliner trim, rear

1шт.

23

1280093C2

PANEL

- headliner trim, right rear

1шт.

24

1276271C1

PANEL

- headliner trim, right front

1шт.

25

353-412

PLUG,Dome, 1.093" hole, Nylon

- plastic

1шт.

26

NSS

NOT SOLD SEPARAT

PANEL - control, heater (Order 1280212C2 panel and 1283479C2 decal)

1шт.

26

NSS

NOT SOLD SEPARAT

PANEL - control, heater/air conditioning (Order 1280212C2 panel and 1283031C2 decal)

1шт.

27

1280182C2

PANEL

- radio and clock

1шт.

28

1321384C1

PANEL

- radio insert

1шт.

29

1321268C2

COVER

- defroster vent

1шт.

30

395467R2

CLIP

- heater hose attaching

2шт.
