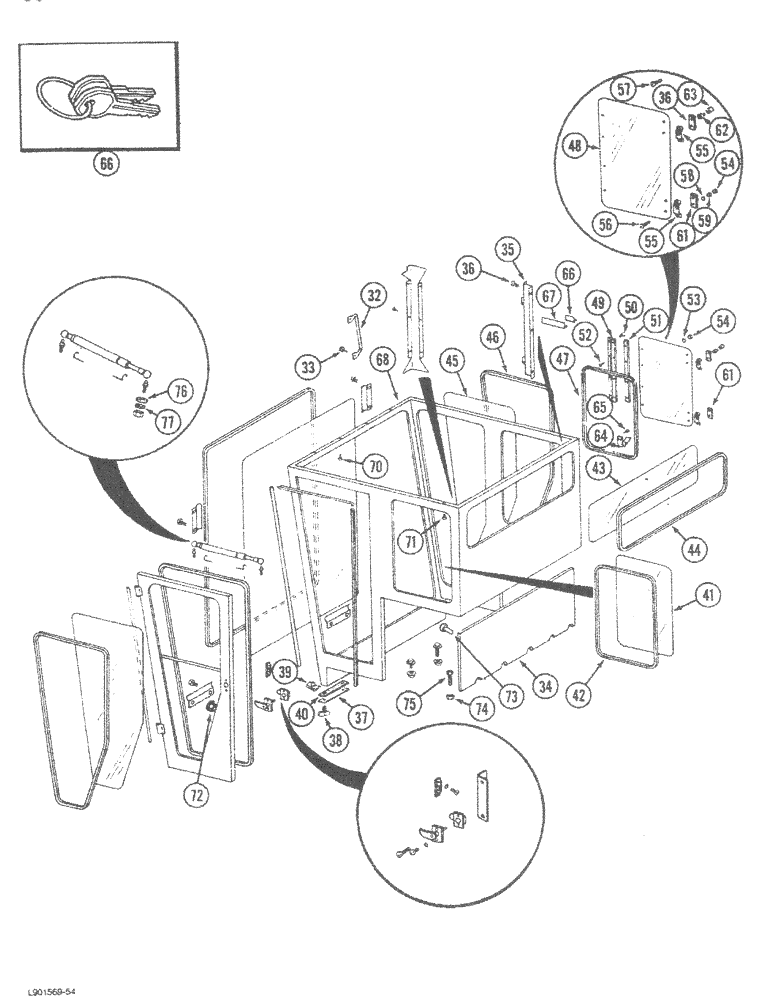

Запчасти Case IH 1620 (9G-20) - OPERATORS CAB (CONTD) (10) - CAB & AIR CONDITIONING

REF

INSTRUCTION

CAB ASSEMBLY - operator, continued, Includes: Ref. 32 - 73

1шт.

32

1321545C1

HANDLE

- grab

1шт.

33

313-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- 5/16 NC x 1 inch

2шт.

34

1321286C2

PANEL

- rear acoustical

1шт.

35

1276309C1

SUPPORT

ASSEMBLY - right filler

1шт.

36

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - No. 10 x 3/8 inch

6шт.

37

1301129C1

DOOR

- clean out

1шт.

38

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

- thumb, clean out door

2шт.

39

1301128C1

NUT

- thumb screw

2шт.

40

NSS

NOT SOLD SEPARAT

STRIP - clean out door seal, 9-11/16 inch (Order 1300025C1, Serial Range: cut-length)

1шт.

41

198244C1

GLASS

- left rear

1шт.

42

NSS

NOT SOLD SEPARAT

MOULDING - cab left rear glass, 87 inch (Order 198131C2, Serial Range: cut-length)

1шт.

43

198247C1

GLASS

- cab rear

1шт.

44

NSS

NOT SOLD SEPARAT

MOULDING - cab rear glass, 123 inch (Order 198131C2, Serial Range: cut-length)

1шт.

45

198184C1

GLASS

- cab right front

1шт.

46

NSS

NOT SOLD SEPARAT

MOULDING - cab right front glass, 130 inch (Order 198131C2, Serial Range: cut-length)

1шт.

47

109594C1

SEAL

MOULDING - right rear window weather

1шт.

48

1283343C1

GLASS

- right rear window

1шт.

49

1301233C1

HINGE

- right rear window

1шт.

50

261-6458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head, No. 10 NF x 1/2 inch

4шт.

51

1301234C1

STRIP

SHIM - hinge, right rear window

1шт.

52

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

4шт.

53

495-31022

WASHER,#10

4шт.

54

196922C1

LOCK NUT

- window lock

8шт.

55

170404C1

HANDLE

ASSEMBLY - right rear window lock

2шт.

56

440-11028

SCREW,Cross Pan Hd, #10-24 x 1 3/4"

- pan head slotted, No. 10 x 1-3/4 inch

2шт.

57

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head slotted, No. 10 x 3/4 inch

4шт.

58

495-31022

WASHER,#10

4шт.

59

225-14110

NUT,#10-24

2шт.

61

183585C1

STRIP

SHIM - strip, right rear window

2шт.

62

896274C1

BUSHING

- window retainer cushion

8шт.

63

196926C1

END FITTING

GRIP - window lock bolt cap

2шт.

64

1281761C2

SPRING

- latch, window

1шт.

65

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head cross slotted, No. 10-16 x 3/8 inch

2шт.

66

1970178C1

SET OF 2 KEYS

KEY - lock, door (Set of 2)

1шт.

68

NSS

NOT SOLD SEPARAT

CAB - operator (Order cab 1330154C91)

1шт.

70

1327768C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 38mm

- self tap, 5/16 inch

10шт.

71

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

- self tap, 5/16 inch

4шт.

72

1330064C1

FLANGE NUT

- hex flange, 5/16 inch NC

6шт.

73

1329797C1

PLUG

- tube, rubber

1шт.

74

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

5шт.

75

1330146C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/2"

- hex, 3/8 NC x 1-1/2 inch

2шт.

76

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

77

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

929460C1

FLUID

- acoutical adhesive, 11 ounce tube

1шт.
