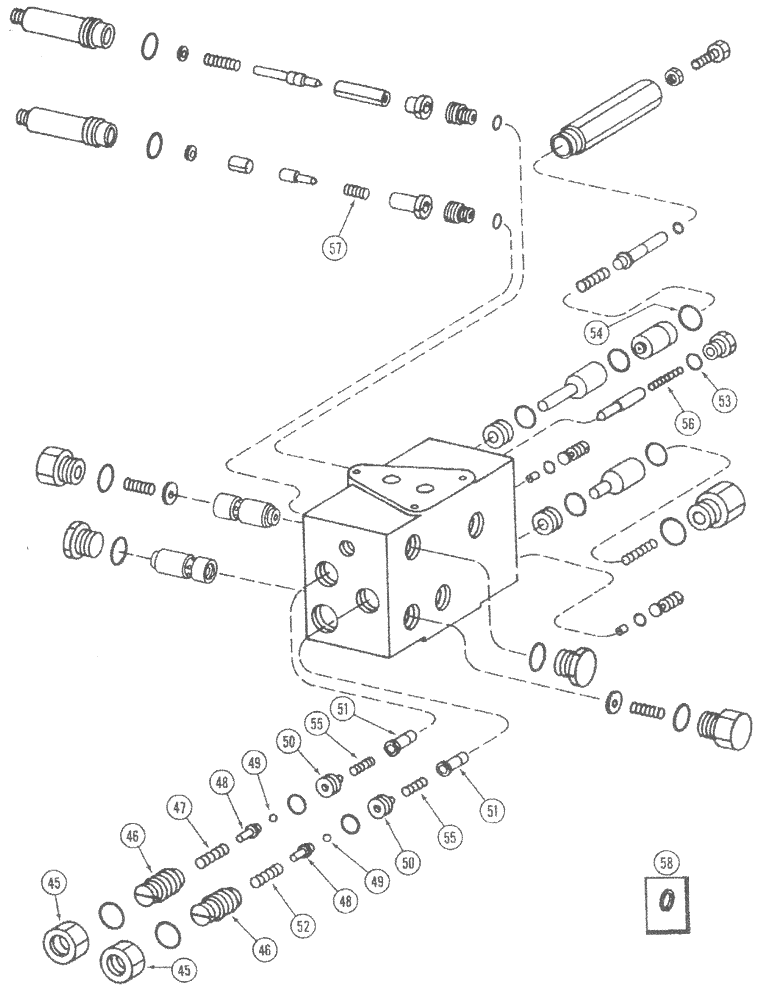

Запчасти Case IH 1620 (8-32) - HEADER VALVE (CONT) (00) - GENERAL

1954161C1

VALVE

ASSEMBLY - header, (continued), Includes: Ref. 45 - 58 and 1 - 44 on Fig. 8-30

1шт.

1301674C1

NUT

- hex, 1 inch

1шт.

45

1301674C1

NUT

- hex, 1 inch

1шт.

46

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

PLUG - guide

1шт.

47

1272403C1

SPRING

- guide

1шт.

48

1301677C1

PIN

GUIDE - orifice

1шт.

49

211-206

BALL,1/4" Dia

- metal, 1/4 inch, Grade 25

1шт.

50

1301654C1

NUT

ORIFICE - poppet

1шт.

51

1301678C1

VALVE

POPPET - valve

1шт.

52

1301636C1

SPRING

- poppet

1шт.

53

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

Part of O-Ring seal repair kit P/N 1282279C1.

1шт.

54

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

Part of O-Ring seal repair kit P/N 1282279C1.

1шт.

55

1301679C1

SPRING

- orifice

1шт.

56

1301729C1

SPRING

- poppet

1шт.

57

1301821C1

SPRING

- poppet

1шт.

530575R91

SHIM KIT

- relief valve, Includes: Ref. 58

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.005 inch (4)

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.007 inch (4)

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.020 inch (2)

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.042 inch (1)

1шт.

1282279C1

SEAL KIT

O-RING KIT - seal repair, Includes: Ref. 5, 9, 14, 17, 19, 26, 35, 40, 41, 53 and 54 on figs. 8-30 and 8-32

1шт.
