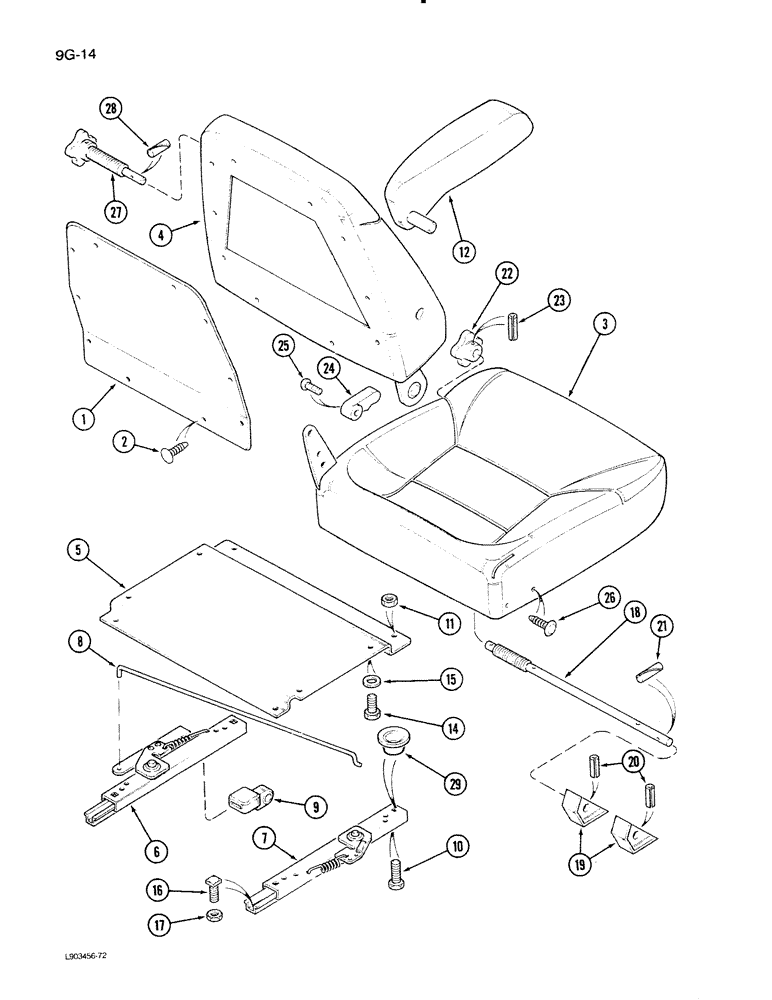

Запчасти Case IH 1620 (9G-14) - 1340184C1 SEAT, AIR SUSPENSION (10) - CAB & AIR CONDITIONING
№
Артикул
Название
Примечание
Количество
1340184C1
SEAT
ASSEMBLY - operators, air suspension, Includes: Ref. 1 - 29
1шт.
1
1981820C1
PACKAGE, REPAIR
KIT - back cover service, Includes: Ref. 2
1шт.
2
1974722C1
CLIP,ELECTRICAL
CLIP - christmas tree
10шт.
3
1981815C1
PACKAGE, REPAIR
KIT - seat pad
1шт.
4
1981816C1
BACKREST
KIT - backrest pad
1шт.
1981817C1
PACKAGE, REPAIR
KIT - slide adapter, Includes: Ref. 5 - 11
1шт.
5
1981868C1
SEAT SUPPORT
PLATE - slide adapter, Includes: Ref. 6 - 11
1шт.
6
1981822C1
SLIDE
- seat, with handle
1шт.
7
1981823C1
SLIDE
- seat
1шт.
8
1981825C1
ELECTRICAL WIRE
WIRE - slide
1шт.
9
1981829C1
WINDOW STAY
KNOB - fore/aft
1шт.
10
413-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
- hex, 5/16 NC x 5/8 inch
4шт.
11
131-351
LOCK NUT,5/16"-18, GA
NUT - lock, 5/16 inch NC
4шт.
12
1981818C1
ARMREST
KIT - arm rest, left
1шт.
14
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
4шт.
15
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
4шт.
16
117-101
BOLT
BOLT - square head 5/16 x 3/4 inch
4шт.
17
131-351
LOCK NUT,5/16"-18, GA
NUT - hex lock, 5/16 inch NC
4шт.
1981856C1
PACKAGE, REPAIR
KIT - seat and backrest, Includes: Ref. 18 - 20 and seat shaft, P/N 1343826C1
1шт.
1343826C1
SHAFT
- seat, narrow, Includes: Ref. 18 - 20
1шт.
18
1343827C1
CAMSHAFT
1шт.
19
1343828C1
CAM
- seat tilt
2шт.
20
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
2шт.
21
138-2022
PIN,5/32" x 1 1/4", Coiled
1шт.
22
1981826C1
KNOB
- seat tilt
1шт.
23
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
1шт.
24
1974711C1
LEVER
KNOB - backrest tilt
1шт.
25
30299R1
SCREW,Cross Oval Hd, M6 x 12
- round head, 6 x 12 mm
1шт.
26
1974722C1
CLIP,ELECTRICAL
CLIP - christmas tree
14шт.
27
1981828C1
BUTTON
KNOB - lumbar
1шт.
28
138-303
LOCK PIN,3/16" x 1 1/8", Slotted
PIN - spiral
1шт.
29
S115782
BUSHING
SPACER - slide cup
4шт.
Выбрано товаров: 32
