Запчасти Case IH 1620 (9G-12) - 1981785C1 SEAT, MECHANICAL SUSPENSION (10) - CAB & AIR CONDITIONING

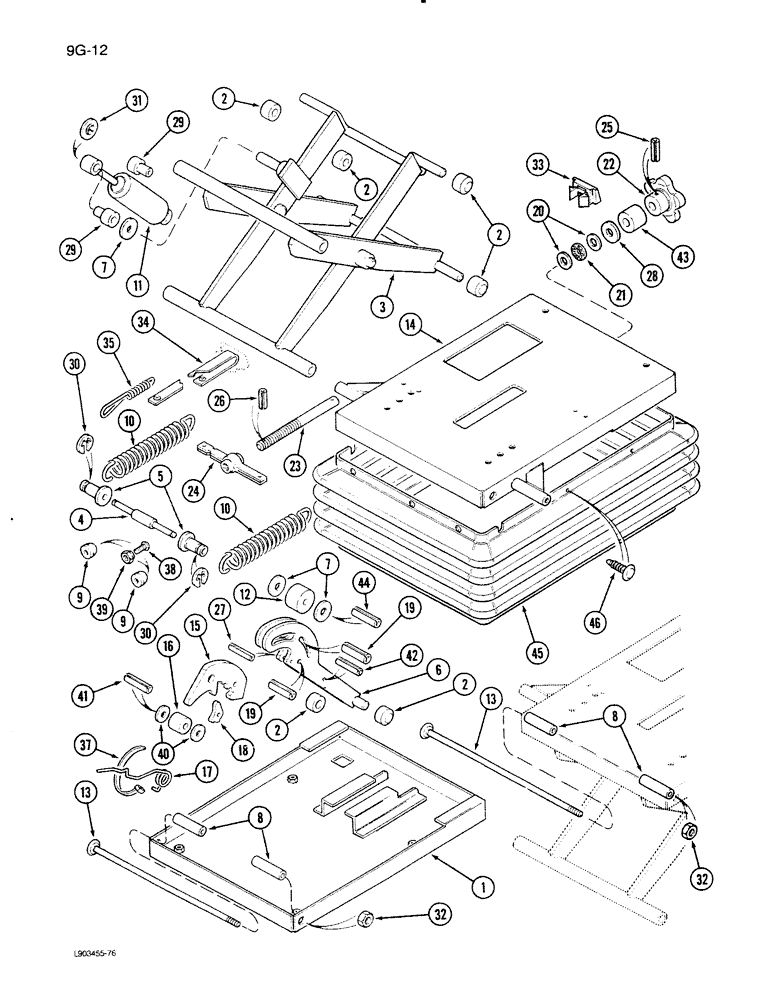

Схема запчастей Case IH 1620 - (9G-12) - 1981785C1 SEAT, MECHANICAL SUSPENSION (10) - CAB & AIR CONDITIONING
10
46
29
9
2
39
30
45
1
17
6
32
38
32
42
34
2
16
14
40
7
2
3
13
28
8
11
29
12
13
9
35
2
5
7
33
21
10
31
30
18
22
4
27
8
44
2
19
23
37
20
26
25
41
43
24
19
15

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SEAT ASSEMBLY - operators, Includes: Ref. 1 - 46

1шт.

REF

INSTRUCTION

SEAT ASSEMBLY - operators

1шт.

1981785C1

PACKAGE, REPAIR

KIT - suspension service, Includes: Ref. 1 - 44

1шт.

1

1981787C1

CASE

HOUSING - lower

1шт.

2

1981788C1

SHIFTER ROLLER

ROLLER - suspension

6шт.

3

1981789C1

DIPPER

ARM - assembly, suspension

1шт.

4

1981790C1

SHAFT

- spring

1шт.

5

1981791C1

BUSHING

- spring

2шт.

6

1981792C1

ARM

- mounting

1шт.

7

A45519

WASHER

- spacer, armrest

5шт.

8

A47760

BUSHING

BEARING - tube

4шт.

9

1981793C1

BUMPER

- seat

2шт.

10

1981794C1

SPRING

- external

2шт.

11

1981795C1

SHOCK ABSORBER

ABSORBER - shock

1шт.

12

1981796C1

BEARING, NEEDLE

BEARING - cam follower

1шт.

13

A49529

SHAFT

- bearing tube

2шт.

14

1981944C1

HOUSING

- upper

1шт.

15

1981798C1

CAM

- low profile

1шт.

16

1981799C1

BEARING, NEEDLE

BEARING - cam follower

1шт.

17

1981800C1

SPRING, LEAF

SPRING - height adjustment

1шт.

18

1981801C1

LATCH

- seat

1шт.

19

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

2шт.

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

20

1981802C1

WASHER, THRUST

RACE - thrust

2шт.

21

F13537

THRUST BEARING

BEARING - thrust

1шт.

22

1981945C1

BUTTON

KNOB - weight adjusting

1шт.

23

1981805C1

SHAFT

- weight adjusting

1шт.

24

1981806C1

BRACKET

BAR - assembly, spring

1шт.

25

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

26

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

1шт.

27

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

28

1974732C1

WASHER

- flat

1шт.

29

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

30

A49623

RING, SNAP

RING - retaining

2шт.

31

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, , Round Push, 1/2"

2шт.

32

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

33

1981807C1

GUIDE

- weight adjuster

1шт.

34

1981808C1

TAPE

- weight adjuster

1шт.

35

1981809C1

SPRING

- suspension

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

38

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

Retaining Cross Pan Hd, #10-24 x 5/8"

2шт.

39

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

2шт.

40

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

41

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

42

138-220

LOCK PIN,3/8" x 3/4", Slotted

PIN, 3/8" x 3/4", Slotted

1шт.

43

1343839C1

SPACER

- adjusting knob

1шт.

44

138-2051

PIN,1/4" x 3/4", Coiled

1/4" x 3/4", Coiled

1шт.

45

1981786C1

KIT

- boot, with buttons

1шт.

46

1343837C1

SET OF PARTS

PIN - retaining (Package of 24)

1шт.

Выбрано товаров: 49
