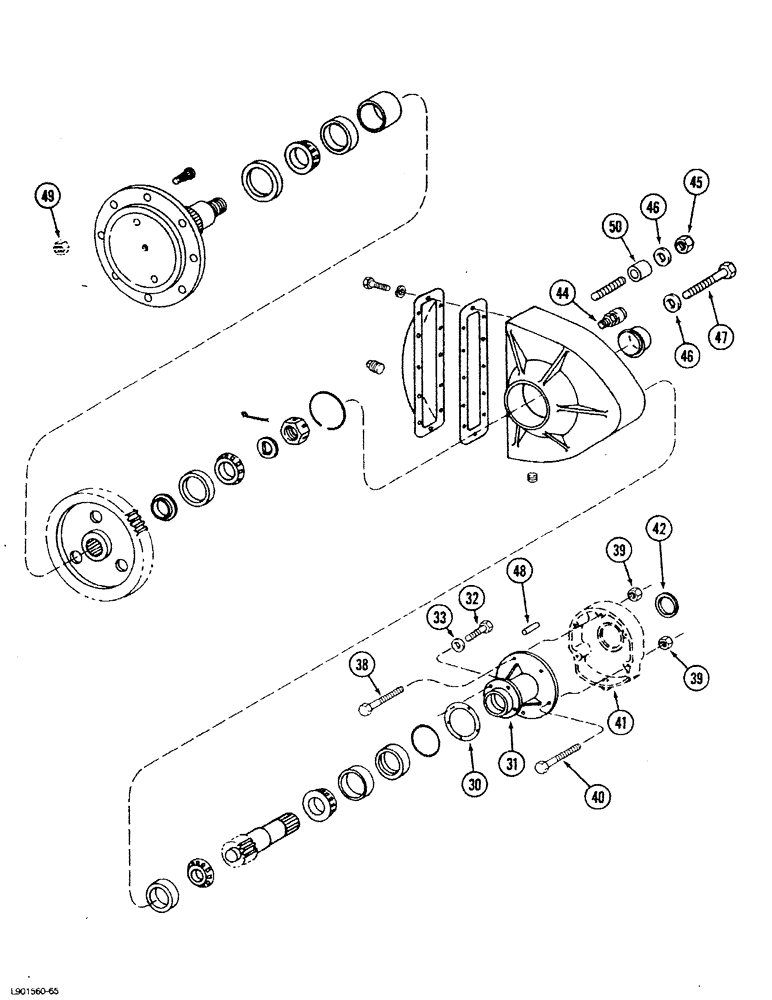

Запчасти Case IH 1620 (6-50) - FINAL DRIVE, (CONT) (00) - GENERAL

1323472C92

DRIVE

ASSEMBLY - final, left (continued), Includes: Ref. 30 - 50 and 1 - 29 on Fig. 6-48

1шт.

1323473C92

DRIVE

ASSEMBLY - final, right, (continued), Includes: Ref. 30 - 50 and 1 - 29 on Fig. 6-48

1шт.

30

405627R1

SHIM

- adapter housing, 0.003 inch

1шт.

30

376467R1

SHIM

- adapter housing, 0.007 inch

1шт.

30

184348C1

SHIM

- adapter housing, 0.015 inch

1шт.

30

184349C1

SHIM

- adapter housing, 0.030 inch

1шт.

31

60002C91

ADAPTER

- brake housing, left

1шт.

31

60004C91

ADAPTER

ASSEMBLY - brake housing, right (Includes Ref. 48)

1шт.

32

28138R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 8

- hex, 7/16 NC x 1-1/8 inch, Grade 8

5шт.

33

26272R1

WASHER,.469" x 59/64" x .105", HDN

- flat, 15/32 x 59/64 x 7/64 inch

5шт.

38

113-320

BOLT,Hex, 7/16" - 14 x 5-1/2", Gr 5

4шт.

39

129-104

NUT,7/16"-14, G5

10шт.

40

113-346

BOLT,Hex, 7/16" - 14 x 5", Gr 5

- hex, 7/16 NC x 5 inch

6шт.

41

REF

INSTRUCTION

HOUSING - brake (See Figure 7-4)

2шт.

42

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

- brake housing

2шт.

44

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

- oil

2шт.

45

329-1012

NUT,3/4"-10, G8

12шт.

46

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

14шт.

47

27356R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

- hex, 3/4 NC x 2 inch, Grade 8

2шт.

48

20556R1

DOWEL,1/2" x 3/4"

PIN - dowel, 1/2 x 3/4 inch

2шт.

49

REF

INSTRUCTION

NUT - hex, wheel retaining (See Figure 6-52)

16шт.

50

1315371C1

BUSHING

- main axle end plate

4шт.
