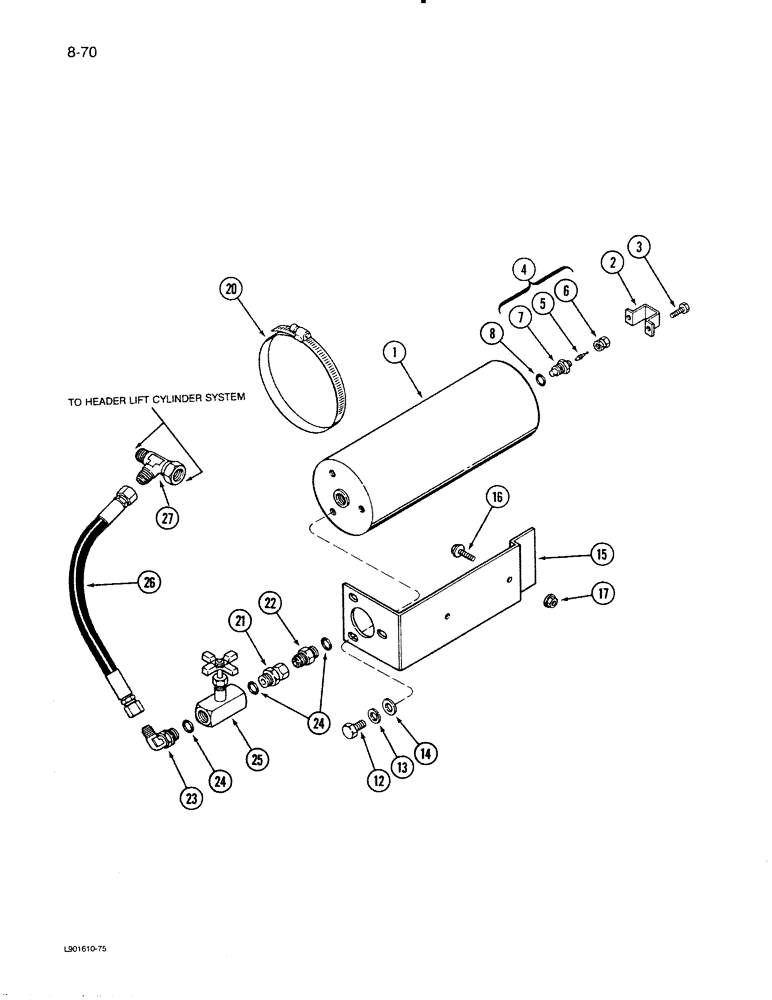

Запчасти Case IH 1620 (8-70) - ACCUMULATOR (07) - HYDRAULICS

1

1978111C1

TANK

ASSEMBLY - accumulator, Includes: Ref. 2 - 8 and seal kit, P/N 1341919C1

1шт.

2

1341920C1

PROTECTOR

GUARD - valve

1шт.

3

187-1521

SELF-TAP SCREW,3/8" - 16 x 5/8"

BOLT - hex tapping, 3/8 NC x 3/4 inch

2шт.

4

1978142C1

VALVE

- accumulator charging, Includes: Ref. 5 - 7

1шт.

5

1978143C1

PISTON

CORE - valve

1шт.

6

1978144C1

CAP

- valve

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve, accumulator charging (Order 1978142C1)

1шт.

8

1978158C1

O-RING

- valve sealing

1шт.

1341919C1

SEAL KIT

KIT - seal

1шт.

12

181693

SUPPORT

- hex, 1/2 NF x 3/4 inch

3шт.

13

92-11050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

14

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

3шт.

15

1979278C1

SUPPORT ASSY.

SUPPORT - accumulator

1шт.

16

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

2шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

20

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP - hose, No. 80, Type F

1шт.

21

1327736C1

ELBOW

CONNECTOR - adaptor

1шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

23

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adj, 3/4-16 inch flare x O-ring boss

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

3шт.

25

183510C1

VALVE

ASSEMBLY

1шт.

26

390649R92

HYDRAULIC HOSE

HOSE - accumulator, 19 inch long

1шт.

27

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj. straight thread

1шт.
