Запчасти Case IH 1620 (8-56) - SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS (07) - HYDRAULICS

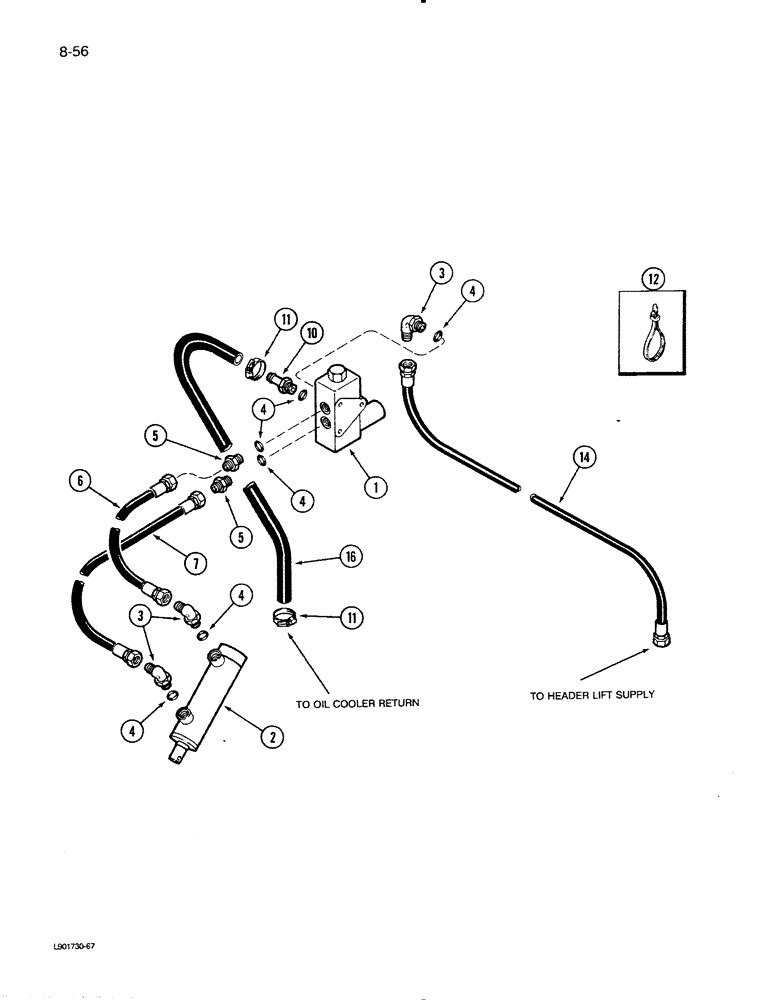

Схема запчастей Case IH 1620 - (8-56) - SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS (07) - HYDRAULICS
14
12
16
11
7
3
3
6
11
4
4
5
4
2
5
4
10
1
4

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch (See Figure 8-62)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic (See Figure 8-68)

1шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 3/8 inch x 9/16-18 inch thread

3шт.

5

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 3/8 tube 9/16-18 inch thread

2шт.

6

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

- Separator clutch 9.52 mm ID x 535.00 mm

1шт.

7

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE - separator clutch, 17 inch

1шт.

10

178036C1

CONNECTOR, ELEC

FITTING - beaded tube, 3/8 inch ID hose

1шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

12

702093C1

CABLE TIE

STRAP - nylon tie

1шт.

14

172763C1

HOSE ASSY.

HOSE - pressure, 36 inch

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - return, 12-1/2 inch (From bulk roll S118400)

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube

6шт.

Выбрано товаров: 12
