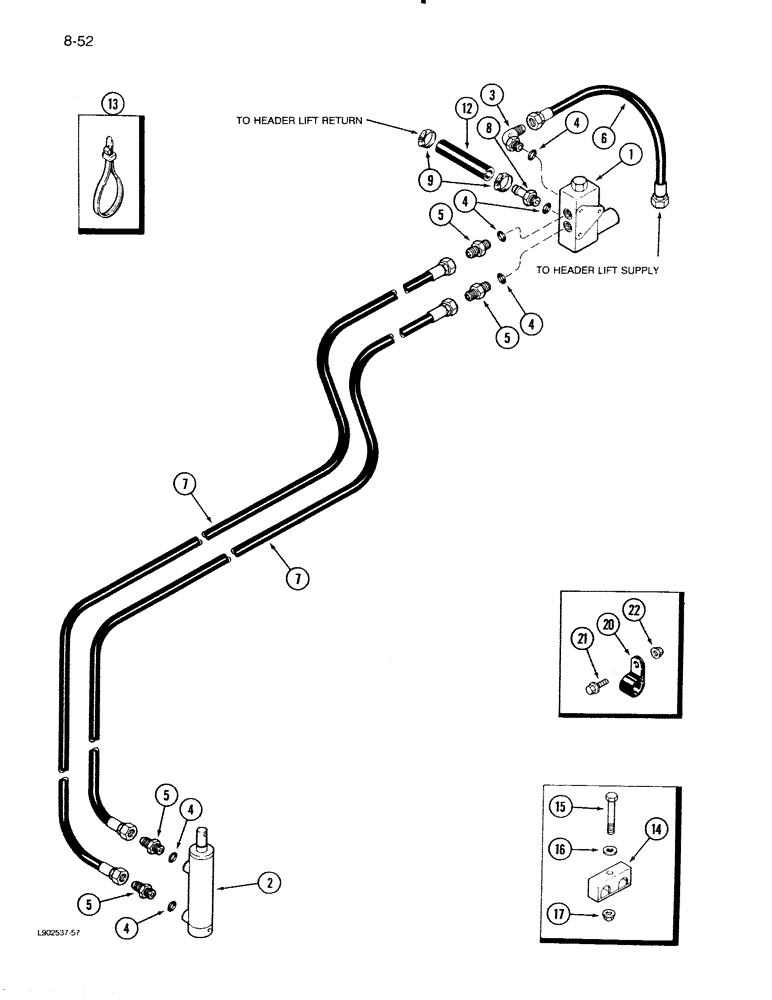

Запчасти Case IH 1620 (8-52) - FEEDER CLUTCH SYSTEM, CONTROL CONCEPTS (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - feeder clutch (See Figure 8-62)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - feeder clutch (See Figure 8-66)

1шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 3/8 tube 9/16-18 thread

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

4шт.

6

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

- Inlet (Feeder clutch supply) 9.52 mm ID x 535.00 mm

1шт.

7

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

HOSE - feeder clutch cylinder, 105 inch

2шт.

8

178036C1

CONNECTOR, ELEC

FITTING - 3/8 tube 9/16-18 x 3/8 O.D. beaded tube

1шт.

9

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

12

NSS

NOT SOLD SEPARAT

HOSE - return, 3/8 inch ID x 15.5 inch (From bulk roll S118400)

1шт.

13

702093C1

CABLE TIE

STRAP - nylon tie

1шт.

14

183825C1

CLAMP

- tube

2шт.

15

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

16

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

17

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

20

27291R1

CLAMP

- hose retaining

1шт.

21

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube

6шт.
