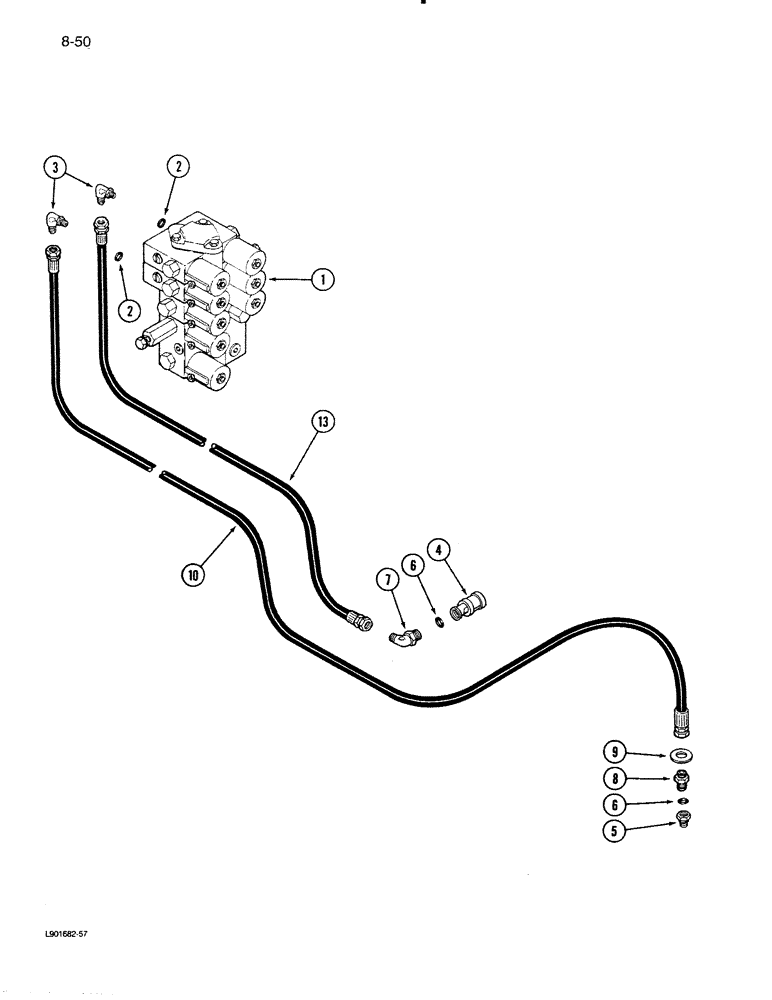

Запчасти Case IH 1620 (8-50) - REEL FORE AND AFT SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-28)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 1/2 tube 3/4-16 x 3/8 tube 9/16-18 thread

2шт.

4

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing female (See Figure 8-76)

1шт.

5

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing male (See Figure 8-76)

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube

2шт.

7

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 deg adj, 3/8-14 flare x 1/2-20 inch O-ring

1шт.

8

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

ADAPTER - short, 9/16-18 flared x 7/8-14 inch o-ring boss

1шт.

9

1327631C1

WASHER

- red

1шт.

10

1254526C2

HOSE ASSY.

HOSE - hydraulic, 1/4 x 135 inch long

1шт.

13

1284291C1

HYDRAULIC HOSE

- 1/4 x 95 inch

1шт.
