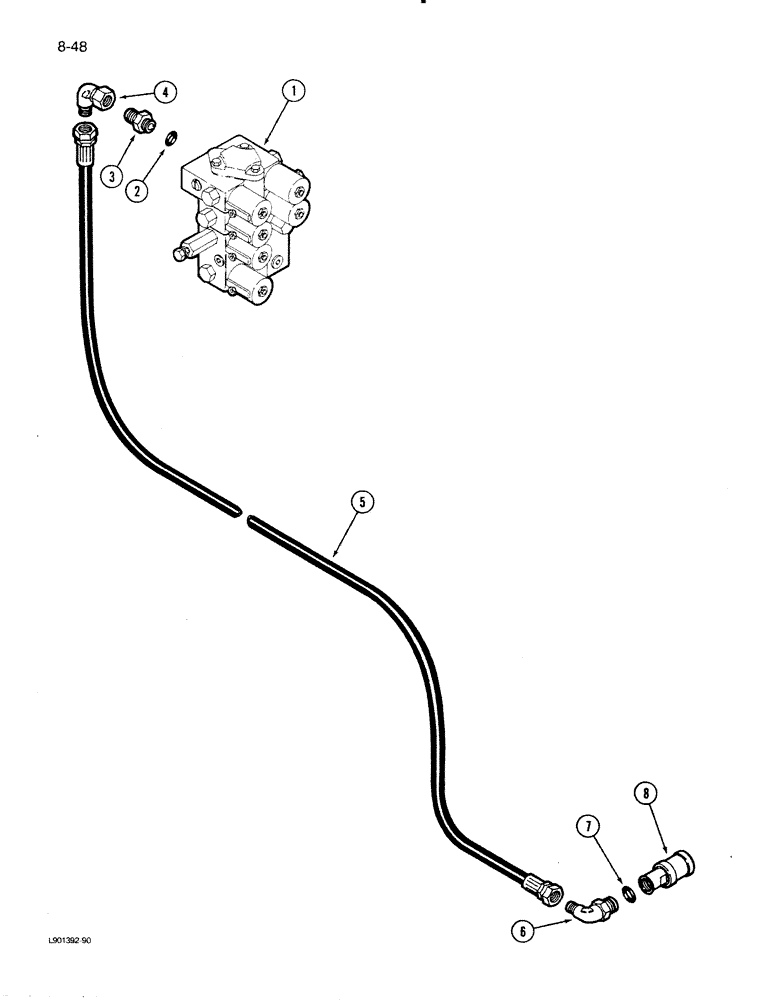

Запчасти Case IH 1620 (8-48) - REEL LIFT SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-28)

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

3

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16 x 7/16 inch thread

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 9/16-18 inch flared

1шт.

5

1284291C1

HYDRAULIC HOSE

- 1/4 x 95 inch

1шт.

6

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 deg adj, 3/8-14 flare x 1/2-20 inch O-ring

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, Class 6

1шт.

8

REF

INSTRUCTION

COUPLING ASSEMBLY - self-sealing female (See Figure 8-76)

1шт.
