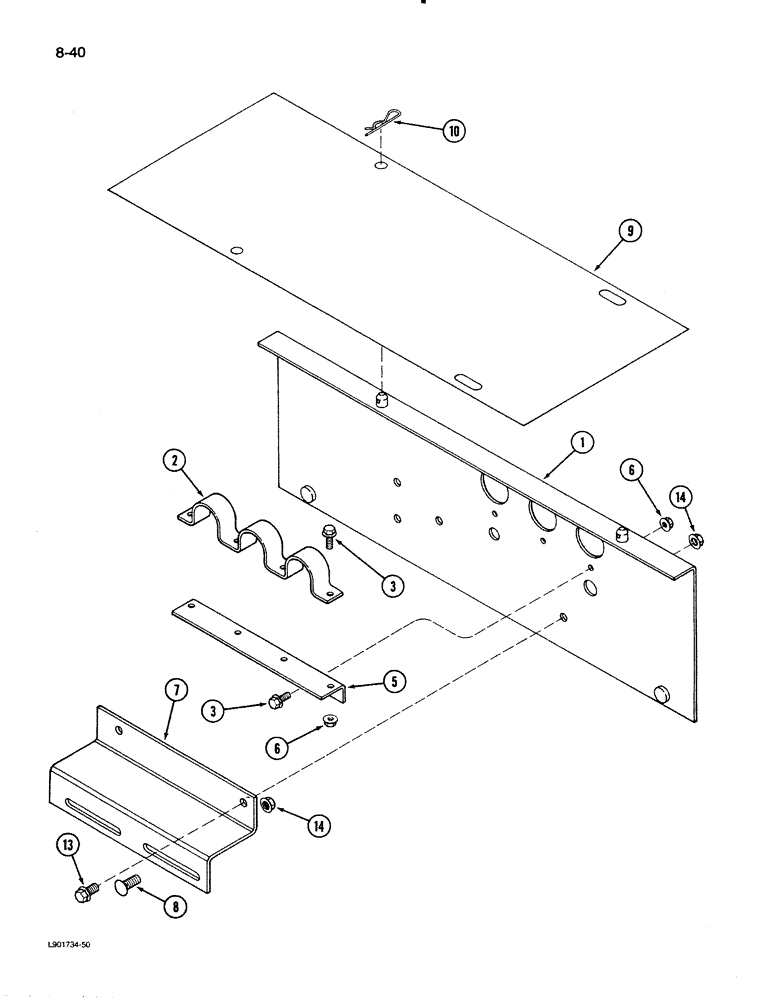

Запчасти Case IH 1620 (8-40) - REEL DRIVE COUPLING MOUNTING (07) - HYDRAULICS

1

1979811C1

SUPPORT

BRACKET - reel drive coupling

1шт.

2

1321990C1

CLAMP

- coupling

1шт.

3

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- hex flange, 1/4 NC x 3/4 inch

6шт.

5

1321989C1

SUPPORT

- coupling

1шт.

6

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

6шт.

7

1327585C1

SUPPORT

- coupling bracket lower

1шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

9

1327604C1

PLATE

- coupling cover

1шт.

10

480523R1

HAIR PIN COTTER

quick attachable

4шт.

13

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

2шт.

14

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.
