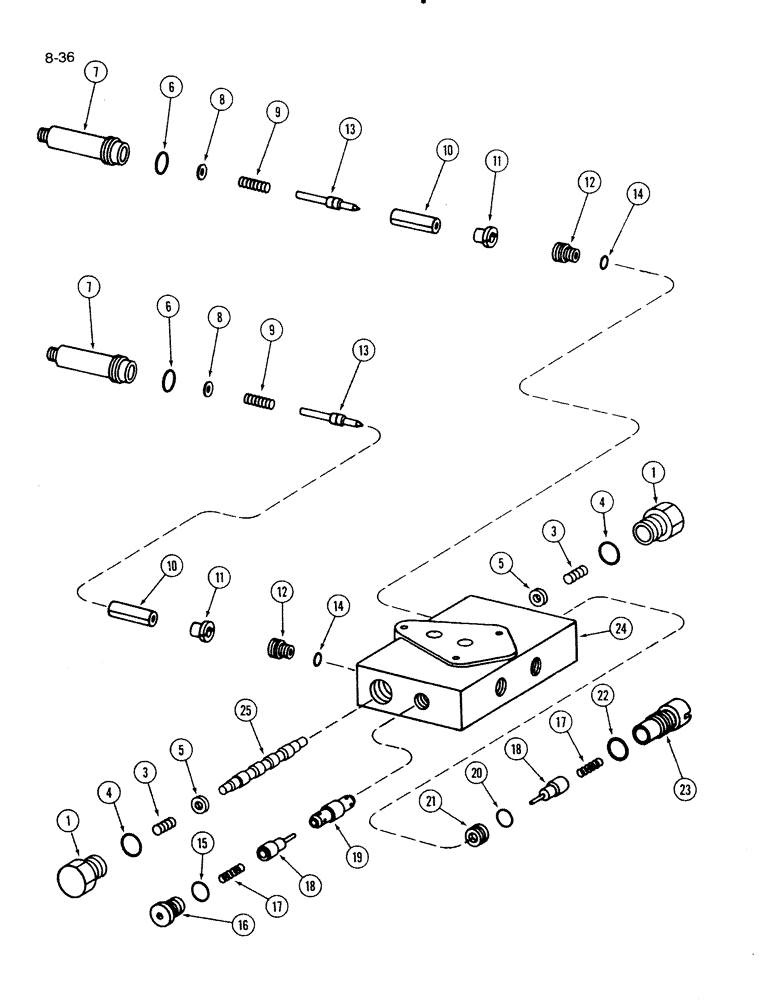

Запчасти Case IH 1620 (8-36) - DOUBLE PILOTED VALVE, AUGER SWING AND REEL BEFORE AND AFTER (07) - HYDRAULICS

1267035C92

VALVE

ASSEMBLY - double piloted, Includes: Ref. 1 - 25

1шт.

1

1301686C1

CAP

PLUG - end

2шт.

3

1301689C1

SPRING

- spool

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, Class 6

2шт.

Part of valve O-ring kit P/N 1282278C1.

1шт.

5

1301687C1

WASHER

- spring

2шт.

6

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

Part of valve O-ring kit P/N 1282278C1.

1шт.

7

1301627C1

STUD

SLEEVE ASSEMBLY - poppet

2шт.

8

1301642C1

WASHER

- spring

2шт.

9

1301640C1

SPRING

- poppet

2шт.

10

1301648C1

ARMATURE

- poppet

2шт.

11

1301624C1

BUSHING

- pole

2шт.

12

1301625C1

ORIFICE

- poppet

2шт.

13

1301647C1

POPPET

- valve

2шт.

14

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

Part of valve O-ring kit P/N 1282278C1.

1шт.

16

1301670C1

PLUG

- poppet

1шт.

17

1272887C1

SPRING

- poppet

2шт.

18

1267160C2

VALVE

POPPET- valve

2шт.

19

1267162C1

VALVE

SPOOL - shuttle

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Part of valve O-ring kit P/N 1282278C1.

1шт.

21

1267163C1

WASHER

WASHER - seat

1шт.

22

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

Part of valve O-ring kit P/N 1282278C1.

1шт.

23

1267164C1

FITTING

GUIDE - retainer

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1267035C92)

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - Order 1267035C92

1шт.

1282278C1

O-RING

KIT - valve, Includes: Ref. 4, 6, 14, 15, 20 and 22

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube

1шт.

Part of valve O-ring kit P/N 1282278C1.

1шт.
