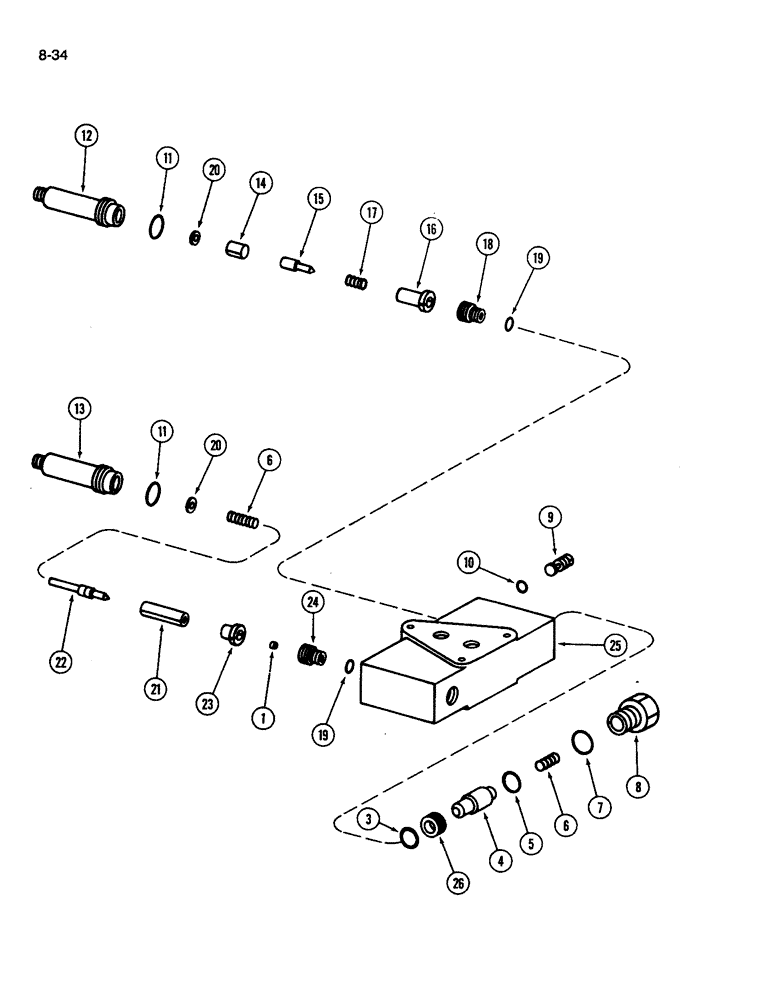

Запчасти Case IH 1620 (8-34) - SINGLE/BI-DIRECTIONAL VALVE ASSEMBLY, REEL LIFT (07) - HYDRAULICS

1301652C91

VALVE

ASSEMBLY - unload/single bi-directional, Includes: Ref. 1 - 26

1шт.

1

1301635C1

PLUG

- orifice

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

Part of valve seal kit P/N 1282280C1.

1шт.

4

1301651C1

PIN

POPPET - valve

1шт.

5

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

1шт.

Part of valve seal kit P/N 1282280C1.

1шт.

6

1301640C1

SPRING

- poppet

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube Class 6

1шт.

Part of valve seal kit P/N 1282280C1.

1шт.

8

1301690C1

PLUG

- end

1шт.

9

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

PLUG - seal

1шт.

10

529909R1

O-RING,1.78mm Thk x 2.54mm ID

- 7/64 x 1/4 inch, Class 6

1шт.

Part of valve seal kit P/N 1282280C1.

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

Part of valve seal kit P/N 1282280C1.

1шт.

12

1301641C1

STUD

SLEEVE ASSEMBLY - poppet

1шт.

13

1301627C1

STUD

SLEEVE ASSEMBLY - poppet

1шт.

14

1301643C1

VALVE

ARMATURE - poppet

1шт.

15

1301644C1

PIN

POPPET - valve, Order 1301644C2. Also Order BUSHING 1301646C2 and SLEEVE 1301641C2 for initial replacement

1шт.

16

1301646C1

BUSHING

- pole

1шт.

17

1301821C1

SPRING

- poppet

1шт.

18

1301625C1

ORIFICE

- bushing

1шт.

19

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

Part of valve seal kit P/N 1282280C1.

1шт.

20

1301642C1

WASHER

- armature

2шт.

21

1301648C1

ARMATURE

- poppet

1шт.

22

1301647C1

POPPET

- valve

1шт.

23

1301624C1

BUSHING

- pole

1шт.

24

1301639C1

PISTON

- bushing

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1301652C91)

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT - poppet (Order 1301652C91)

1шт.

1282280C1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL KIT - valve, Includes: Ref. 3, 5, 7, 10, 11 and 19

1шт.
