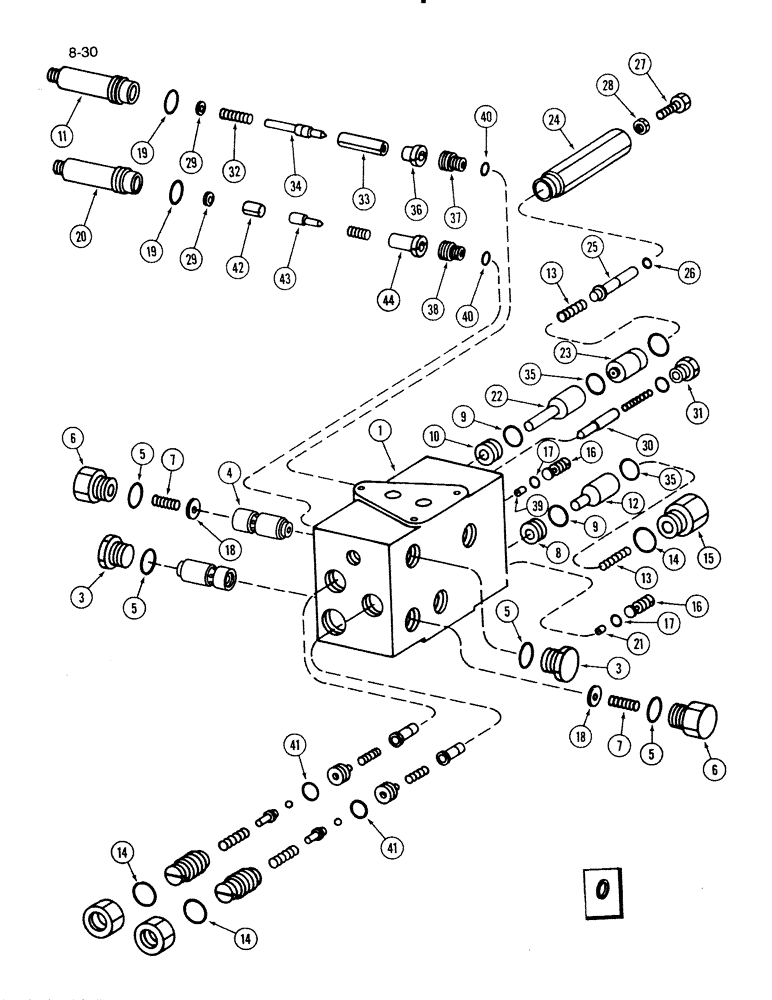

Запчасти Case IH 1620 (8-30) - HEADER VALVE (07) - HYDRAULICS

1954161C1

VALVE

ASSEMBLY - header, Includes: Ref. 1 - 44 and 45 - 58 on fig. 8-32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1954161C1)

1шт.

3

1301653C1

PLUG,3/4" - 16 x 9.50mm

CAP - end

2шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - priority (Order 1954161C1)

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

Part of O-Ring seal repair kit P/N 1282279C1.

1шт.

6

1272253C1

PLUG

CAP - end

2шт.

7

1272254C1

SPRING

- spool

2шт.

8

1301657C1

PISTON

ORIFICE - poppet

1шт.

9

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

Part of O-Ring seal repair kit P/N 1282279C1.

1шт.

10

1301658C1

PISTON

ORIFICE - poppet

1шт.

11

1301627C1

STUD

SLEEVE ASSEMBLY - poppet

1шт.

12

1301659C1

PIN

POPPET - valve

1шт.

13

1301660C1

SPRING

- poppet

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, Class 6

3шт.

Part of O-Ring seal repair kit P/N 1282279C1.

1шт.

15

1301661C1

PLUG

- hex

1шт.

16

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

PLUG - seal

2шт.

17

529909R1

O-RING,1.78mm Thk x 2.54mm ID

- 7/64 x 1/4 inch, Class 6

2шт.

Part of O-Ring seal repair kit P/N 1282279C1.

1шт.

18

1301662C1

WASHER

DISC - dampening

2шт.

19

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

Part of O-Ring seal repair kit P/N 1282279C1.

1шт.

20

1301641C1

STUD

SLEEVE ASSEMBLY - poppet

1шт.

21

1301649C1

PLUG

PLUG - orifice

1шт.

22

1301664C1

VALVE

POPPET - lower

1шт.

23

1301665C1

PISTON

SPOOL - plunger

1шт.

24

1301666C1

PLUG

- adjusting

1шт.

25

1301667C1

PIN

PLUNGER - adjusting

1шт.

26

238-6006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

- 1/8 x 1/4 inch

1шт.

Part of O-Ring seal repair kit P/N 1282279C1.

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

28

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, 3/8 inch NC

1шт.

29

1301642C1

WASHER

- spring

2шт.

30

1301668C2

SPOOL

POPPET - check valve

1шт.

31

1301669C1

PLUG

- poppet

1шт.

32

1301640C1

SPRING

- poppet

1шт.

33

1301648C1

ARMATURE

- poppet

1шт.

34

1301647C1

POPPET

- valve

1шт.

35

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

2шт.

Part of O-Ring seal repair kit P/N 1282279C1.

1шт.

36

1301624C1

BUSHING

- pole

1шт.

37

1301625C1

ORIFICE

- poppet

1шт.

38

1301639C1

PISTON

ORIFICE - poppet

1шт.

39

1301671C1

PLUG

- orifice

1шт.

40

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

Part of O-Ring seal repair kit P/N 1282279C1.

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Part of O-Ring seal repair kit P/N 1282279C1.

1шт.

42

1301643C1

VALVE

ARMATURE - poppet

1шт.

43

1301644C1

PIN

POPPET - valve, Order 1301644C2. Also Order BUSHING 1301646C2 and SLEEVE 1301641C2 for initial replacement

1шт.

44

1301646C1

BUSHING

- pole

1шт.

1282279C1

SEAL KIT

O-RING KIT - seal repair, Includes Ref. 5, 9, 14, 17, 19, 26, 35, 40, 41, 53 and 54 on Figs. 8-30 and 8-32

1шт.
