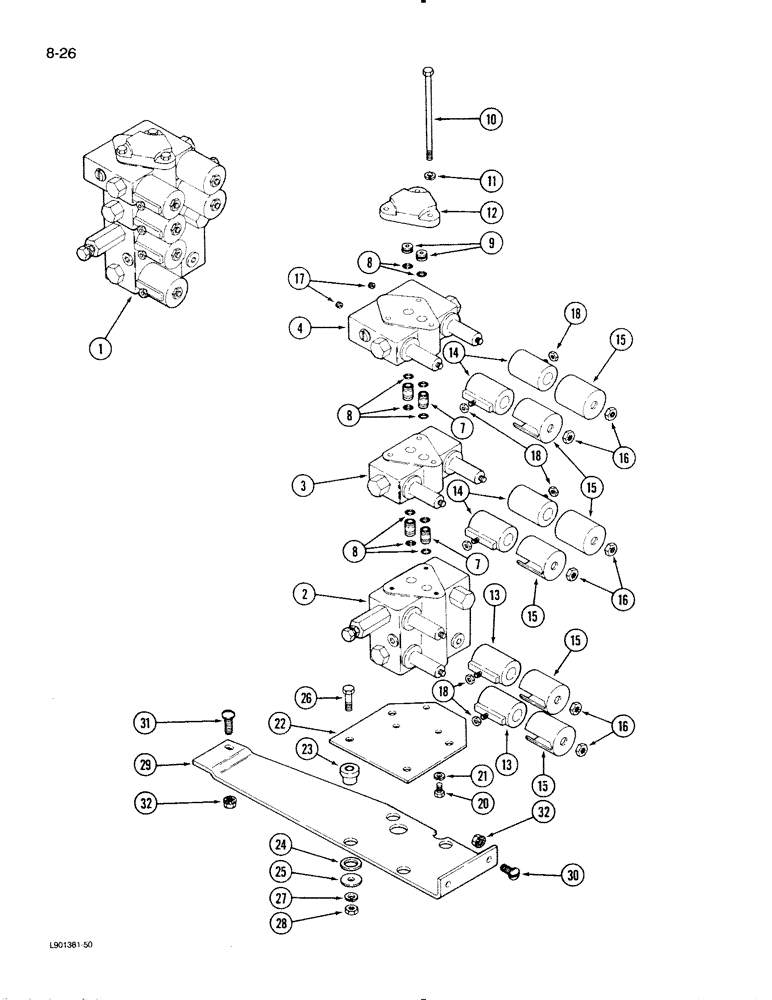

Запчасти Case IH 1620 (8-26) - CONTROL VALVE AND MOUNTING, COMBINES WITHOUT BEFORE AND AFTER REEL CONTROL (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - control (Order components), Includes: Ref. 2 - 7
1шт.
2
1954161C1
VALVE
ASSEMBLY - header (See figure 8-30)
1шт.
3
1301652C91
VALVE
ASSEMBLY - unload single/bi-directional (See Figure 8-34)
1шт.
4
1267035C92
VALVE
ASSEMBLY - double piloted (See Figure 8-36)
1шт.
7
1301630C1
TUBE
- through
4шт.
1282281C1
O-RING
SEAL KIT - valve repair, Includes: Ref. 8 - 18
1шт.
8
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
14шт.
9
1301634C1
VALVE
PLUG - cap
2шт.
10
28602R1
BOLT,Hex, 1/4" - 20 x 4 1/4", Gr 5
- hex, 1/4 NC x 4-1/4 inch
3шт.
11
493-41026
LOCK WASHER,Ext Tooth, 1/4"
WASHER - lock, 1/4 inch
3шт.
12
85258C1
CAP
- end
1шт.
13
1301730C1
VALVE
COIL - header valve
2шт.
14
1301633C1
COIL
- unloader and piloted valve
4шт.
15
1301632C1
CAP
COVER - coil
6шт.
16
107825
NUT,Stamped, 1/2"-20
- hex stamped, 1/2 inch NF
6шт.
17
1301637C1
ORIFICE
PLUG - orifice
2шт.
18
225-20210
NUT,#10-32, Brass
6шт.
20
413-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
- hex, 5/16 NC x 1/2 inch
3шт.
22
183683C1
BAR
PLATE - control valve mounting
1шт.
23
196504C1
BUSHING
- header lift valve
4шт.
24
495-81039
WASHER,25/32" x 1 1/4" x .120"
- flat, 25/32 x 1-1/4 x 7/64 inch
4шт.
25
495-81135
WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk
- flat, 13/32 x 1 x 7/64"
4шт.
26
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
- hex, 3/8 NC x 1-3/4 inch
4шт.
27
492-11038
LOCK WASHER,3/8"
4шт.
28
425-106
NUT,3/8"-16, Cl 5
4шт.
29
183684C1
SUPPORT
- control valve
1шт.
30
135270
SERRATED SCREW,5/16" - 18 x 3/4"
- slotted truss head, 5/16 NC x 3/4 inch
2шт.
31
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
- slotted, truss head, 5/16 NC x 1 inch
1шт.
32
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- flange lock, 5/16 inch NC
3шт.
Выбрано товаров: 30
