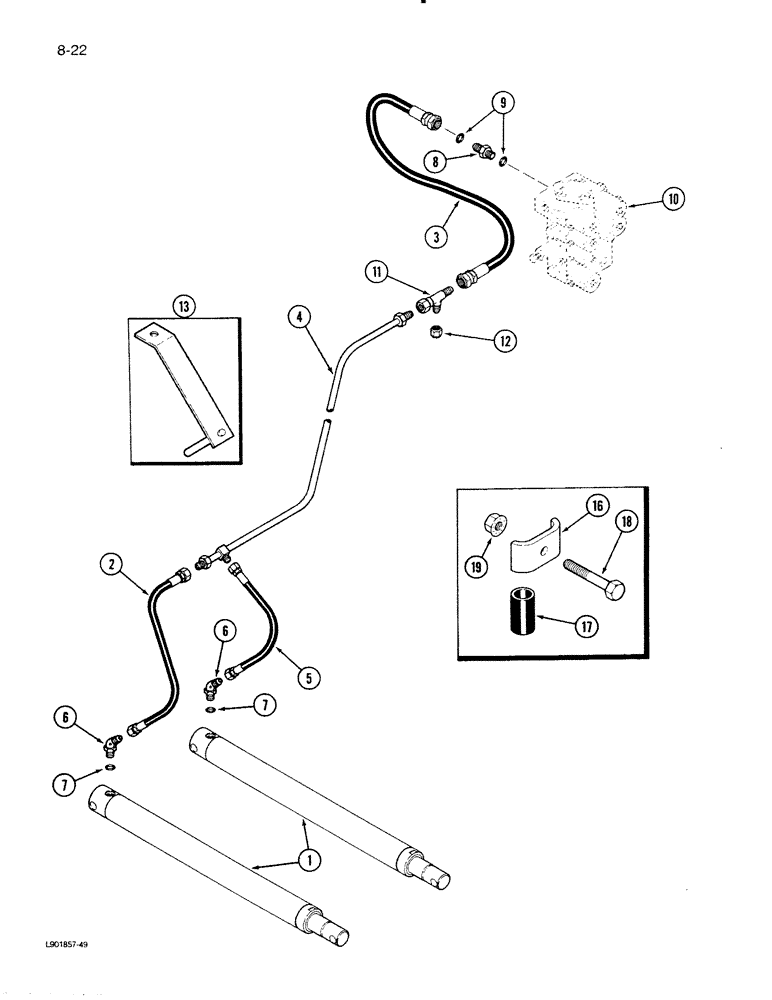

Запчасти Case IH 1620 (8-22) - HEADER LIFT CYLINDER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - header lift (See Figure 8-24)

2шт.

2

1310709C1

HOSE

- header lift cylinder, 45 inch

1шт.

3

90875C1

HYDRAULIC HOSE

HOSE - hydraulic, 29 inch

1шт.

4

187757C2

HYD TUBE,0.5" OD, 828, 525 mm Length

TUBE - header lift cylinder

1шт.

5

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

- header lift cylinder, 31 inch

1шт.

6

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 45 degree adjustable, 1/2 tube 3/4-16 inch thread

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

8

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, Class 6

2шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-30)

1шт.

11

REF

INSTRUCTION

TEE - used with accumulator attachment (See Figure 8-10)

1шт.

12

9403372

CAP,37 Degree, 3/4"-16

- 1/2 tube 3/4-16 inch thread

1шт.

13

173143C2

SUPPORT

- header lift hose

1шт.

16

165601C1

CLAMP

- header lift cylinder tube

2шт.

17

163491C1

RUBBER INSULATOR

STRIP - tube clamp

2шт.

18

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

2шт.
