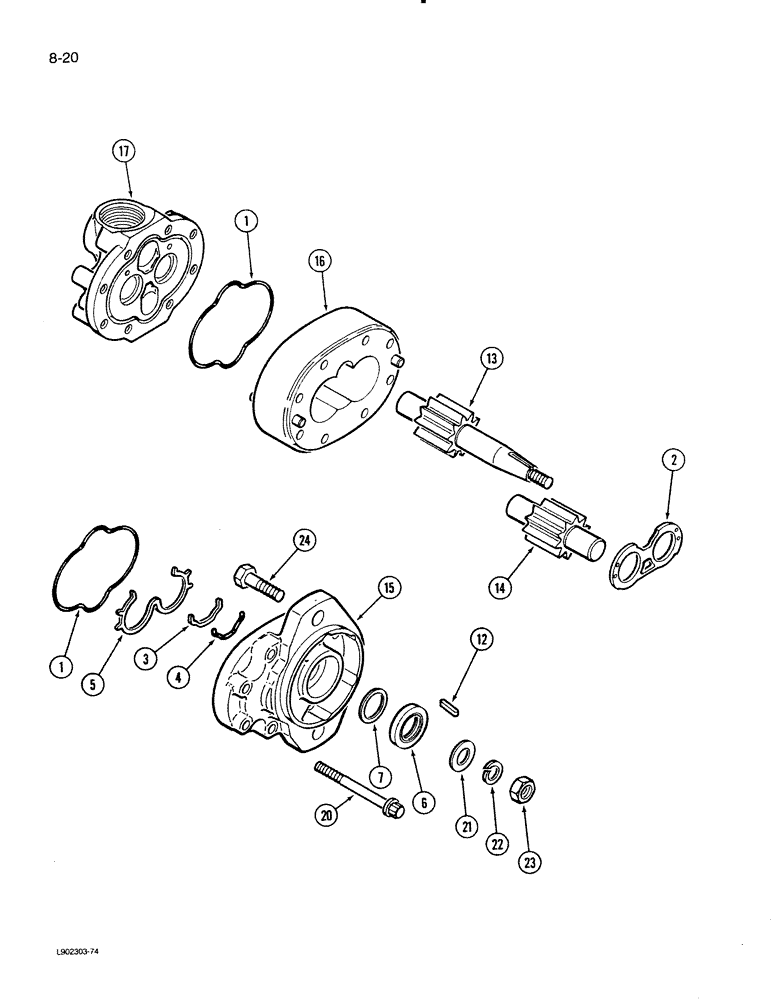

Запчасти Case IH 1620 (8-20) - AUXILIARY HYDRAULIC PUMP ASSEMBLY (07) - HYDRAULICS

1272257C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - header lift (New)

1шт.

1949284C1

REMAN-HYD PUMP

PUMP ASSEMBLY - lift (Remanufactured)(North America only)

1шт.

87607373R

REMAN-HYD PUMP

1620 S/N JJC0032630 & AFTER (1/86-12/92),Reman for New P/N 1949284C1

1шт.

87607373C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1949285C1

PUMP

CORE ASSEMBLY - pump (Use this number to return pump core for credit), Includes: Ref. 1 - 20 and seal kit, P/N 1949285C1

1шт.

1272638C2

SEAL KIT

SEAL KIT - pump

1шт.

1

NSS

NOT SOLD SEPARAT

O-RING - body

2шт.

2

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - molded

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - back-up

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

12

ZA703292

BUCKET TOOTH KEY

KEY - shaft

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - front

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - retaining, pump

8шт.

21

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

3шт.

23

425-106

NUT,3/8"-16, Cl 5

3шт.

24

424-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 2

- hex, 3/8 NC x 1-1/4 inch

2шт.
