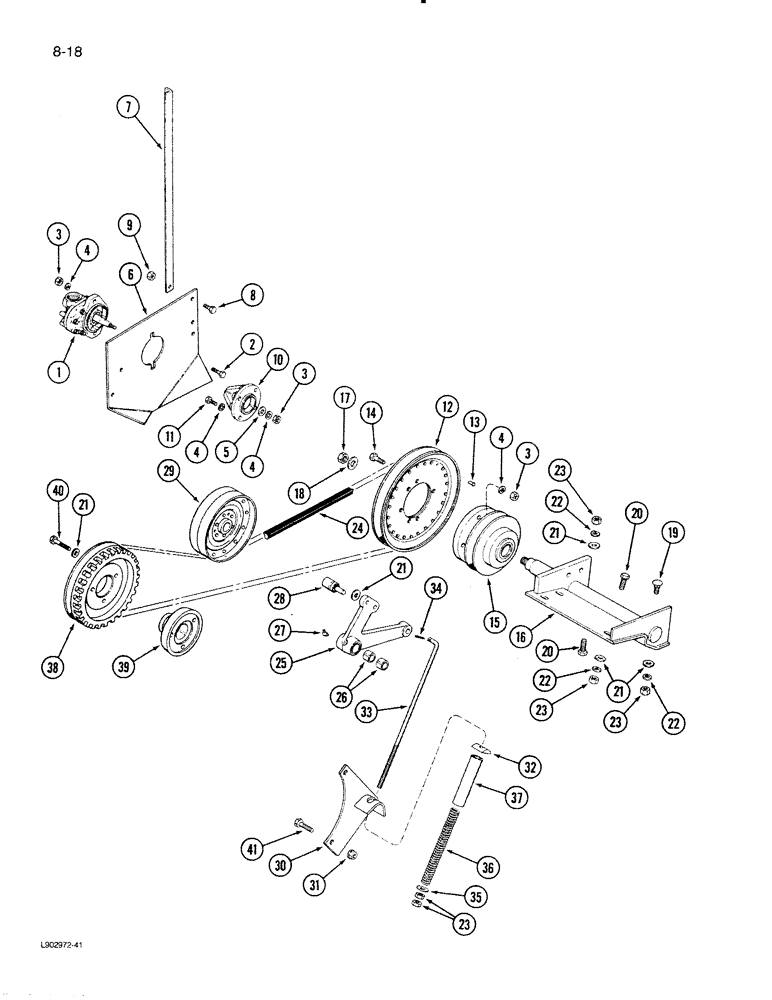

Запчасти Case IH 1620 (8-18) - AUXILIARY HYDRAULIC PUMP MOUNTING (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - header lift (See figure 8-20)

1шт.

2

424-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 2

- hex, 3/8 NC x 1-1/4 inch

2шт.

3

425-106

NUT,3/8"-16, Cl 5

7шт.

4

492-11038

LOCK WASHER,3/8"

11шт.

5

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

1шт.

6

192958C4

PLATE

- hydraulic pump

1шт.

7

187735C1

ANGLE

- pump plate

1шт.

8

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

9

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch

2шт.

10

191207C1

HUB

- hydraulic pump

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

12

192943C1

PULLEY ASSY.

PULLEY ASSEMBLY - pump driven, 11-21/32 inch O.D., Includes: Ref. 13

1шт.

13

47-410

RIVET,FH, 1/4" x 5/8"

- solid flat head, 1/4 x 5/8 inch

24шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

15

192945C91

PULLEY ASSY.

PULLEY ASSEMBLY - unloader drive

1шт.

16

181338C1

SUPPORT ASSY.

BRACKET - auxiliary drive rear

1шт.

17

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

18

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

- flat, 25/32 x 1-1/2 x 5/32 inch

1шт.

19

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

5шт.

21

495-11053

WASHER,1/2", SAE

(17/32 x 1-1/16 x 1/16") 1/2", SAE

10шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

9шт.

24

1970115C1

BELT,22.23 mm W x 2541.29 mm L

V-BELT , Pump drive 22.23 mm W x 2541.29 mm L

1шт.

25

192946C92

LEVER ASSY.

LEVER ASSEMBLY - pump idler pulley

1шт.

26

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

- lever

2шт.

27

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree, 1/4 inch taper drive thread

1шт.

28

274844R91

BEARING ASSY,30mm OD x 73.66mm L

- idler pulley

1шт.

29

192865C1

PULLEY

- idler, 8 inch O.D.

1шт.

30

194729C1

SUPPORT

- pump drive pivot

1шт.

31

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

32

194652C1

PIVOT

BAR - pump drive pivot

1шт.

33

191823C1

ROD

- auxiliary drive jackshaft

1шт.

34

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

35

460908R1

WASHER

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

35

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

35

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

36

V368

SPRING

- drive rod

1шт.

37

181119C1

SPACER

-drive rod

1шт.

38

196481C1

PULLEY

- auxiliary pump drive

1шт.

39

196482C2

HUB

- drive pulley

1шт.

40

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

- 1/2 NC x 2-1/2 inch, Grade 8

3шт.

41

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.
