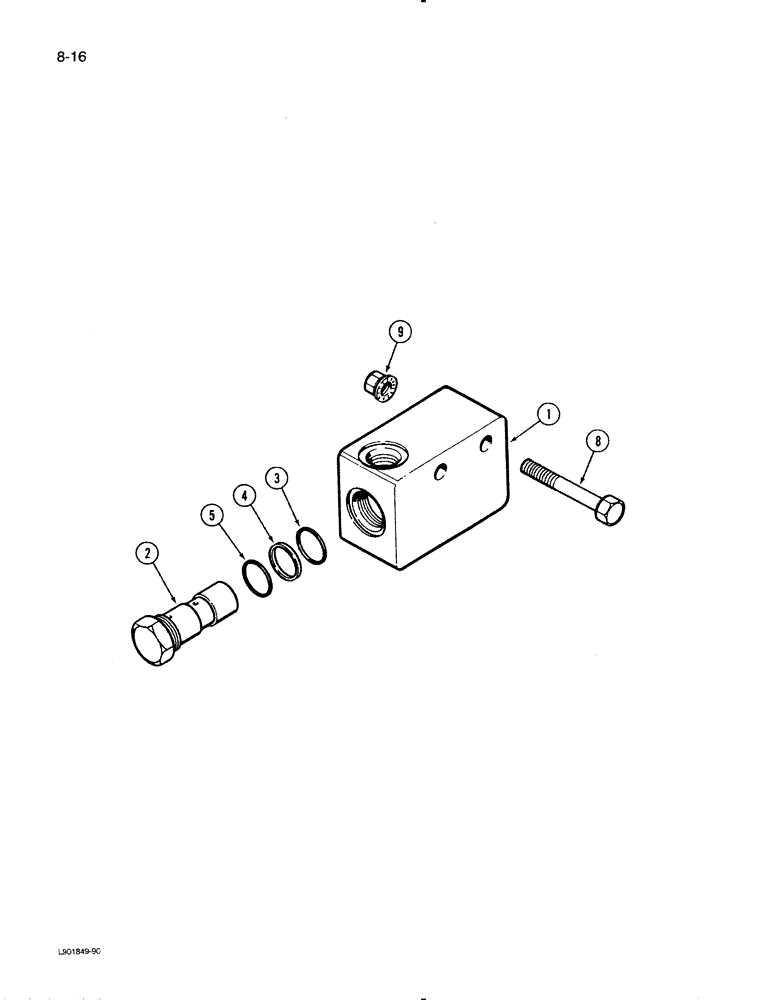

Запчасти Case IH 1620 (8-16) - RELIEF VALVE ASSEMBLY (07) - HYDRAULICS

1971746C1

VALVE

ASSEMBLY - relief (Alternate with 549528R93), Includes: Ref. 1 - 5

1шт.

549528R93

VALVE

ASSEMBLY - relief (Alternate with 1971746C1), Includes: Ref. 1 - 5

1шт.

1

403187R1

BLOCK

BODY - valve

1шт.

2

396729R93

VALVE

ASSEMBLY - relief

1шт.

3

383219R1

O-RING,0.924" ID x 0.103" Width

- 15/16 x 1-1/8 inch

1шт.

4

378985R2

BACK-UP RING

- backup

1шт.

5

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- 7/8 x 1-1/16 inch

1шт.

8

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

9

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.
