Запчасти Case IH 1620 (8-14) - HEADER LIFT RETURN SYSTEM (07) - HYDRAULICS

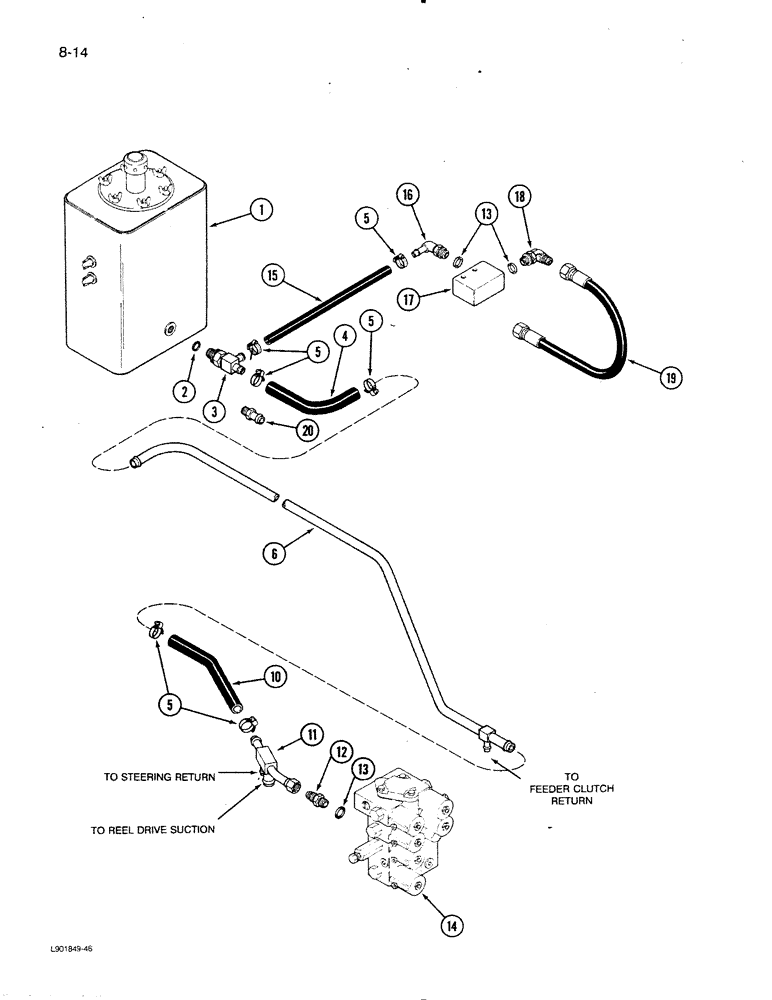

Схема запчастей Case IH 1620 - (8-14) - HEADER LIFT RETURN SYSTEM (07) - HYDRAULICS
5
3
12
11
5
20
5
19
14
5
10
4
16
13
15
17
13
18
6
2
1

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See figure 8-2)

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch O.D. tube, Class 6

1шт.

3

172059C1

TEE

- adjustable, 1-1/16-12 inch thread x 3/4 x 5/8 inch O.D. barb end

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - 3/4 inch ID oil, 12 inch (From bulk roll B90927)

1шт.

5

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12 Type F

6шт.

6

187755C1

TUBE ASSY.

TUBE - header lift return

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - 3/4 inch ID oil, 7 inch (From bulk roll B90927)

1шт.

11

1310757C1

TUBE

- manifold

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, Class 6

3шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control (See figure 8-28)

1шт.

15

1957369C1

HYDRAULIC HOSE,15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

Return, Relief Valve 15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

1шт.

16

1321659C1

ELBOW,90 Degree, 7/8"-14 O-Ring x 5/8" Barb end

ASSEMBLY - 90 degree adjustable

1шт.

17

REF

INSTRUCTION

VALVE ASSEMBLY - relief (See Figure 8-16)

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss

1шт.

19

156436H1

HYDRAULIC HOSE,0.50" ID x 20.00", SAE 100R1 Class 7

Pressure, Relief Valve 0.50" ID x 20.00", SAE 100R1 Class 7

1шт.

Выбрано товаров: 16
