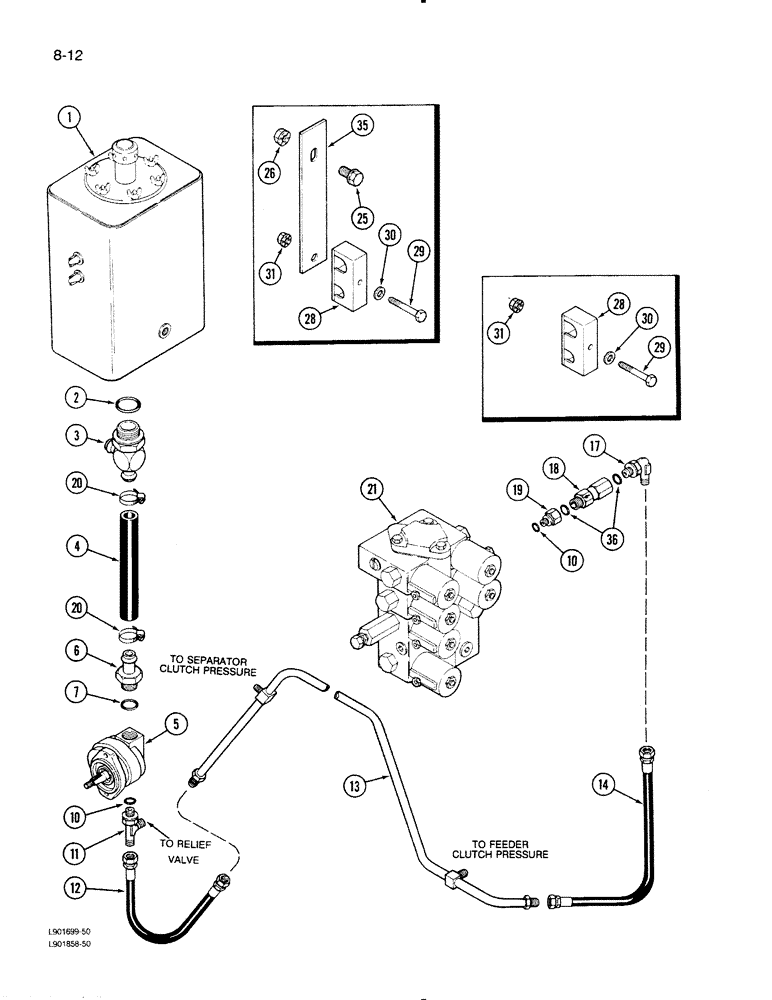

Запчасти Case IH 1620 (8-12) - HEADER LIFT SUPPLY SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See figure 8-2)

1шт.

2

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

3

1301506C1

TEE

- 1-1/2 tube 1-7/8-12 thread x 1 inch O.D. beaded tube

1шт.

4

1310776C1

HOSE

- header lift suction, 11-3/4 inch

1шт.

5

REF

INSTRUCTION

PUMP ASSEMBLY - auxiliary hydraulic lift, 12 GPM (See Figure 8-20)

1шт.

6

180182C1

FITTING

CONNECTOR - 1 inch tube 1-5/16-12 thread x 1 inch O.D. beaded tube

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, 1 inch O.D. tube

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 O.D. tube, Class 6

4шт.

11

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

- hydraulic adjustable, 7/8-14 inch thread

1шт.

12

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

- header lift pressure, 18-1/4 inch

1шт.

13

187756C1

HYD TUBE

TUBE - header lift pressure

1шт.

14

381170R91

HOSE

- header lift pressure, 15-1/2 inch

1шт.

17

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

- 90 degree adjustable, 7/8-14 x 1-1/16-12 inch thread

1шт.

18

1272346C1

FILTER

ASSEMBLY - valve pressure line

1шт.

19

1968919C1

FITTING

ADAPTER - reducer, 7/8-14 x 1-1/16-12 inch thread

1шт.

20

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose, No. 24 Type F

2шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - control (See figure 8-28)

1шт.

25

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex head flange, 3/8 NC x 3/4 inch

1шт.

26

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

28

121714C1

CLAMP

- header lift tubes

4шт.

29

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- 1/4 NC x 1-3/4 inch

4шт.

30

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

31

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

4шт.

35

187510C2

BAR

- header lift tubes, 7-1/2 inch long

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.
