Запчасти Case IH 1620 (8-10) - OIL COOLER (07) - HYDRAULICS

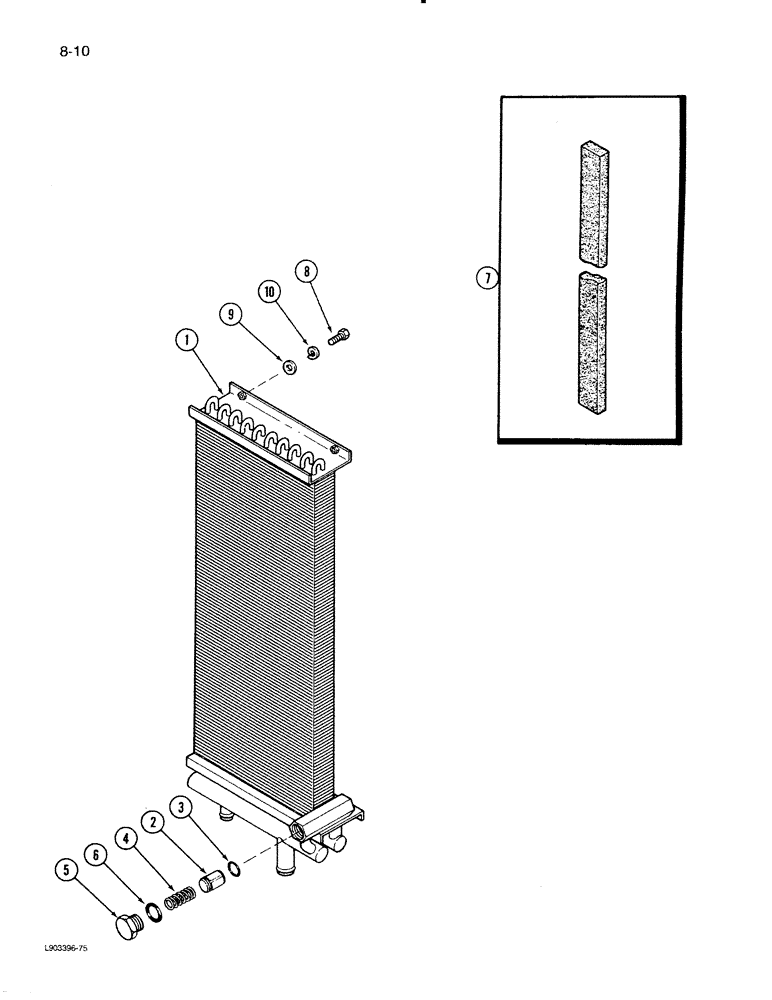

Схема запчастей Case IH 1620 - (8-10) - OIL COOLER (07) - HYDRAULICS
10
5
4
3
6
9
7
1
2
8

Артикул

Название

Примечание

Количество

1

84627C1

COOLER

- oil, Includes: Ref. 2 - 6

1шт.

2

93198C1

VALVE

- check

1шт.

3

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

4

A189029

SPRING

- check valve

1шт.

5

273916

PLUG,Hex, 1-5/16" - 12 ORB

Pipe, Includes Ref. 6 Hex Hd, 1 5/16"-12 ORB

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil cooler (Order 1338147C1 and, Serial Range: cut-length)

2шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

9

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 3/64 inch

8шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

Выбрано товаров: 10
