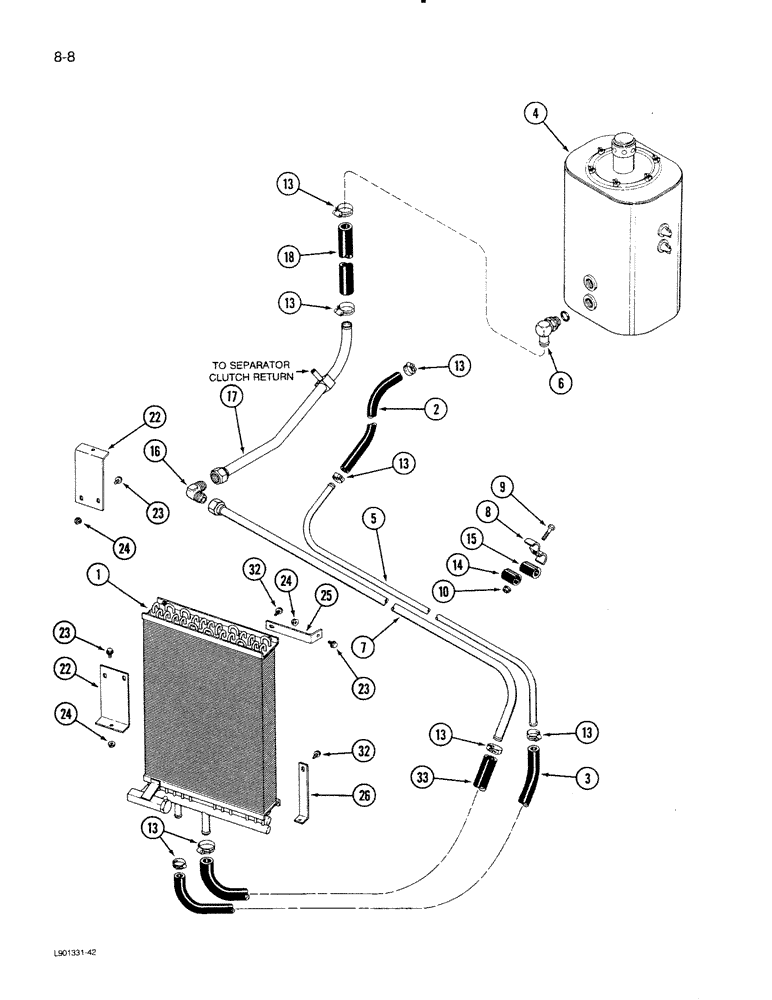

Запчасти Case IH 1620 (8-08) - OIL COOLER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

COOLER ASSEMBLY - oil (See Figure 8-10)

1шт.

For rice combine double quantity required.

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - oil cooler, 27 inch long (Order 180720C1, Serial Range: cut-length)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - oil, 37 inch long (Order 180720C1, Serial Range: cut-length)

1шт.

4

REF

INSTRUCTION

RESERVOIR - hydraulic oil (See figure 8-2)

1шт.

5

1330590C1

HYD TUBE

TUBE - reservoir to oil cooler

1шт.

6

178995C1

ELBOW

- beaded tube

1шт.

7

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE - oil cooler return

1шт.

8

157678C1

CLAMP

- hydraulic tube retaining

2шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

13

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP - hose retaining

8шт.

14

187935C1

STRIP

- pressure tube clamp

2шт.

15

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - cover, oil hose

2шт.

16

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree

1шт.

17

1979731C1

TUBE

- cooler return

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE - cooler return to reservoir, 18-1/2 inch long (Order B90928, Serial Range: cut-length)

1шт.

22

1330025C1

SUPPORT

- oil cooler, left

2шт.

For rice combine double quantity required.

1шт.

23

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

8шт.

24

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

25

1330026C1

SUPPORT

- oil cooler, top right

1шт.

For rice combine double quantity required.

1шт.

26

1330027C1

SUPPORT

SUPPPORT - oil cooler bottom, right

1шт.

For rice combine double quantity required.

1шт.

32

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

33

NSS

NOT SOLD SEPARAT

HOSE - oil cooler return, 41 inch long (Order B90928, Serial Range: cut-length)

1шт.
