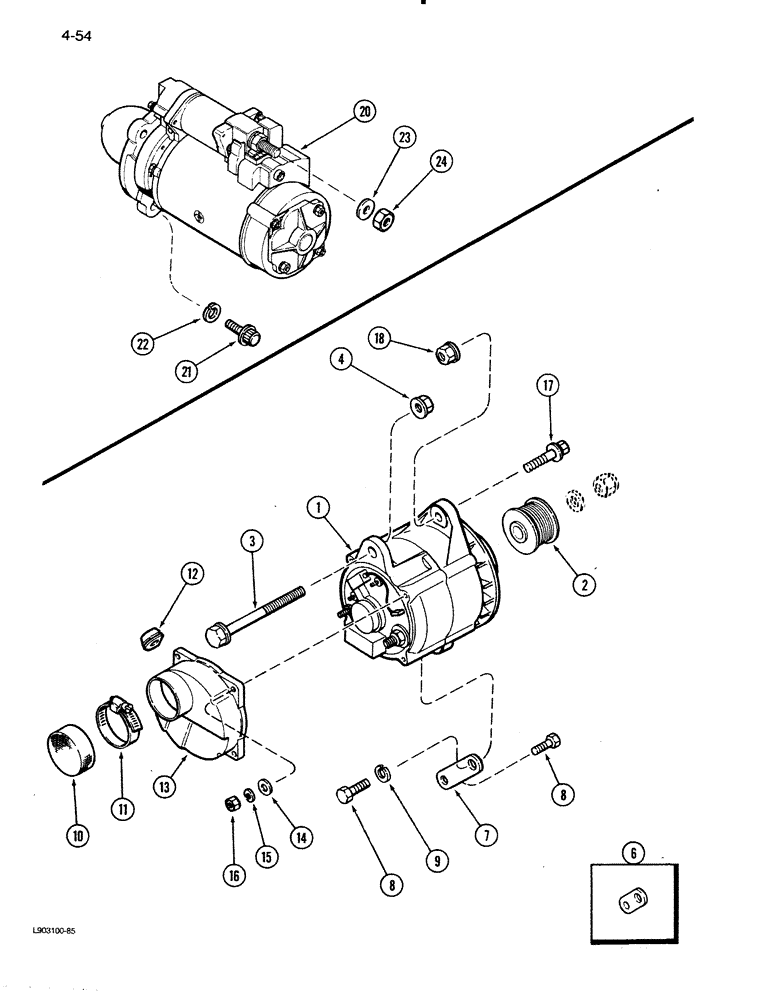

Запчасти Case IH 1620 (4-54) - ALTERNATOR MOUNTING (06) - ELECTRICAL

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-58)

1шт.

2

A189616

PULLEY

- alternator

1шт.

3

J903105

FLANGE BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

BOLT - hex flange, 12 mm - 1.75 x 150 mm

1шт.

4

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

- hex flange, 12 mm - 1.75, class 10

1шт.

6

J903922

PLATE

BRACE - alternator (Alternate with J910924)

1шт.

7

J910924

PLATE

BRACE - alternator (Alternate with J903922)

1шт.

8

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

1шт.

8

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, 8 mm - 1.25 x 45 mm

1шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

10

1979627C1

COVER

SCREEN - alternator cover

1шт.

11

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - hose, No. 32 type F

1шт.

12

1964826C1

GROMMET

GR0MMET - alternator (Dust cover)

1шт.

13

1338890C1

COVER

- end cover, alternator

1шт.

14

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 1/16 inch

4шт.

15

892-1105

LOCK WASHER,M5

WASHER - lock, 5 mm

4шт.

16

825-1405

NUT,M5, Cl 8

- hex, 5 mm, Grade 10

4шт.

17

121-426

BOLT,Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

1шт.

18

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

20

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-60), mounting

1шт.

21

31242R1

12 PT SCREW,M12 x 35mm, Cl 12.9

BOLT - 12 point flange head, 12 x 35 mm, starter mounting

3шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Starter Mounting M12

3шт.

23

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Starter mounting 1/2", SAE

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Starter mounting 1/2"-13, G5

1шт.
