Запчасти Case IH 1620 (4-46) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL

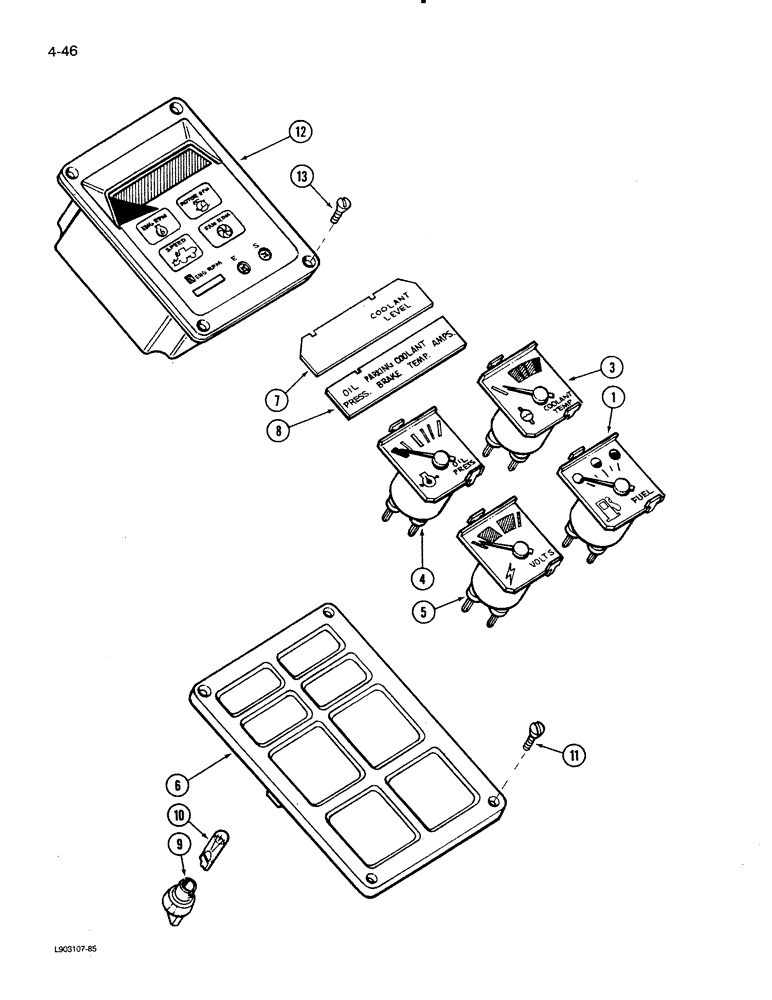

Схема запчастей Case IH 1620 - (4-46) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL
8
3
7
13
1
11
6
12
4
5
9
10

Артикул

Название

Примечание

Количество

1983246C1

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument, gauge, Includes: Ref. 1 - 10

1шт.

1

121604C1

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

121605C2

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

4

121606C1

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

5

121607C1

METER

VOLTMETER - cluster

1шт.

6

121608C1

GASKET

BEZEL AND GASKET ASSEMBLY - cluster

1шт.

7

1979357C1

LENS

- warning light, coolant level

1шт.

8

187597C1

LENS

- warning light, oil pressure, brake, temperature, amperes

1шт.

9

121611C1

SOCKET

ASSEMBLY - instrument cluster

8шт.

10

W10478

LAMP

- Type C-2F, No. 194

8шт.

11

27204R1

SELF-TAP SCREW

- oval head cross slotted, No. 10-16 x 3/4 inch

4шт.

1935068C2

ELECTRICAL GAUGE

TACHOMETER - engine, remanufactured (North America Only)

1шт.

1935067C2

RETURN NUMBER - use this part number to return tachometer for credit

1шт.

12

245249C2

TACHOMETER - engine (New)

1шт.

13

26233R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1/2"

SCREW - oval head cross slotted, No. 10-16 x 1/2 inch

4шт.

Выбрано товаров: 15
