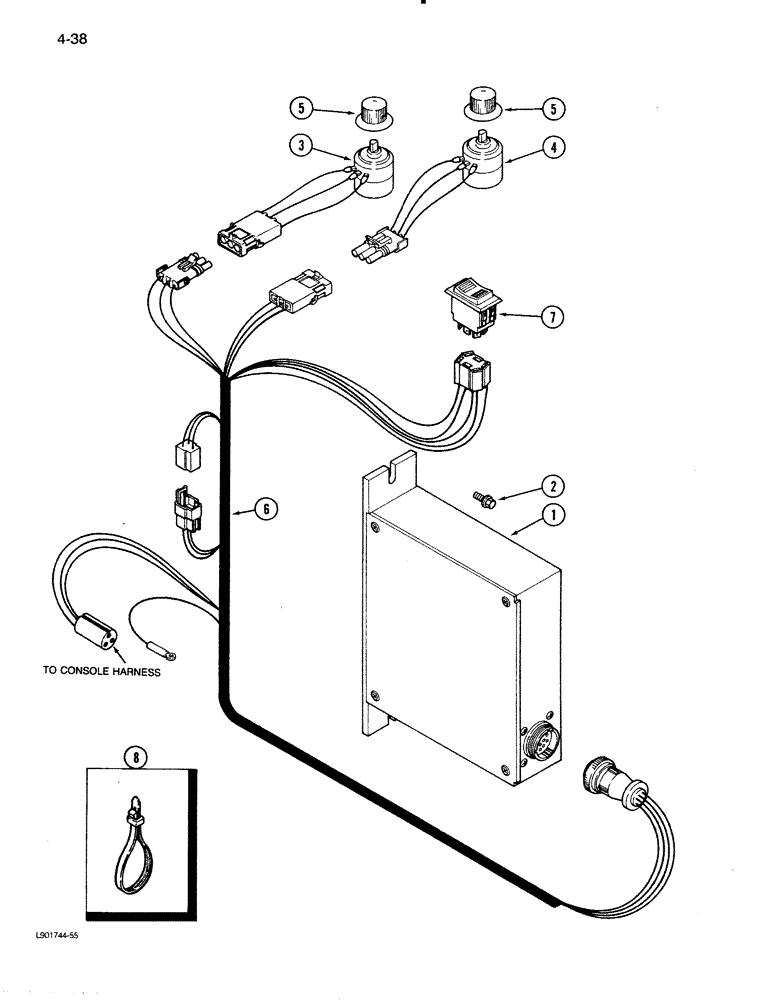

Запчасти Case IH 1620 (4-38) - AUTOMATIC HEADER HEIGHT CONTROL (06) - ELECTRICAL

1

91479C91

CASE

MODULE KIT - automatic header height control

1шт.

2

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex washer head, 1/4 x 1/2 inch

2шт.

3

245385C1

POTENTIOMETER,1000 Ohm

Header Height Control 1000 Ohm

1шт.

4

245925C1

POTENTIOMETER,1000 Ohm

Sensitivity Controlrol 1000 Ohm

1шт.

5

1301036C1

BUTTON

KNOB - control

2шт.

6

245924C1

HARNESS

ASSEMBLY - automatic header height

1шт.

7

245012C1

SWITCH

- automatic header control, ON-OFF

1шт.

8

702093C1

CABLE TIE

STRAP - tie

1шт.
