Запчасти Case IH 1620 (4-32) - WARNING LIGHT, FRONT AND REAR (06) - ELECTRICAL

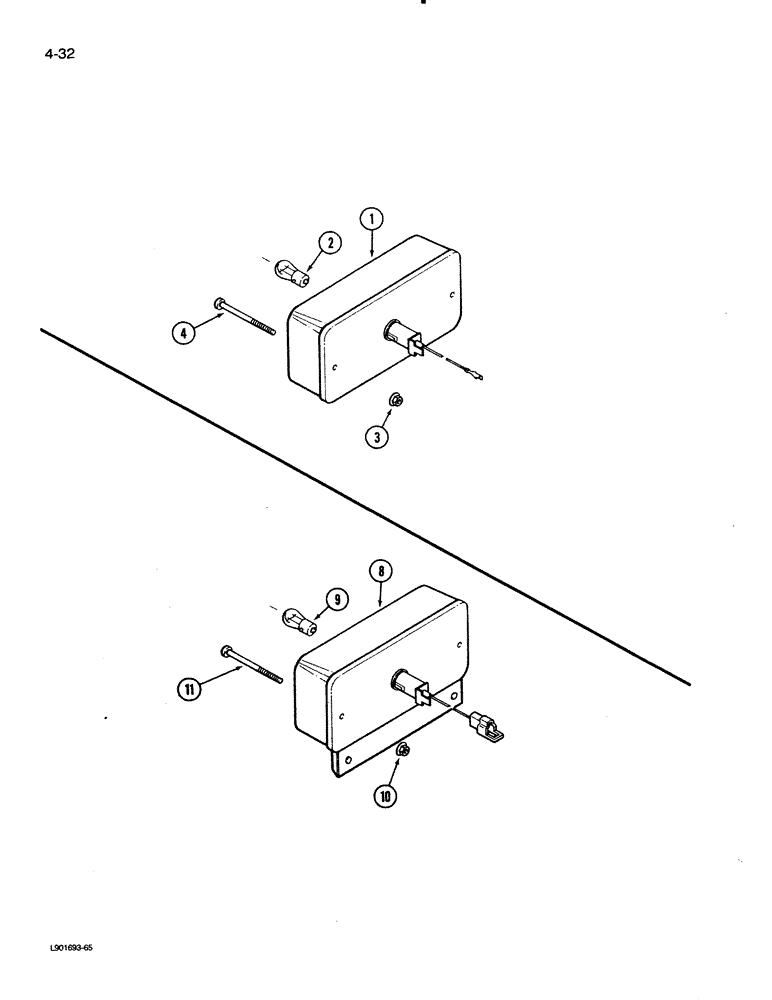

Схема запчастей Case IH 1620 - (4-32) - WARNING LIGHT, FRONT AND REAR (06) - ELECTRICAL
10
9
4
3
11
8
1
2

Артикул

Название

Примечание

Количество

130882C91

LAMP

LIGHT ASSEMBLY - warning, Includes: Ref. 1 - 4

4шт.

1

130883C1

LENS

- amber

1шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

3

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24 NC

2шт.

4

28151R1

SCREW

- pan head machine, No. 10-24 NC x 2-1/4 inch

2шт.

216044C92

LAMP

LIGHT ASSEMBLY - stop and tail, Includes: Ref. 8 - 11

2шт.

The 216044C92 is the 2 Wire light Assy. The 92260C1 is the 3 Wire light Assy.

1шт.

8

216045C1

LENS

- red, stop and tail light

1шт.

9

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail light

1шт.

10

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24 NC, stop and tail light

2шт.

11

28151R1

SCREW

- pan head machine, No. 10-24 NC x 2-1/4 inch, stop and tail light

2шт.

Выбрано товаров: 11
