Запчасти Case IH 1620 (4-30) - CAB MOUNTED SPOTLIGHT (06) - ELECTRICAL

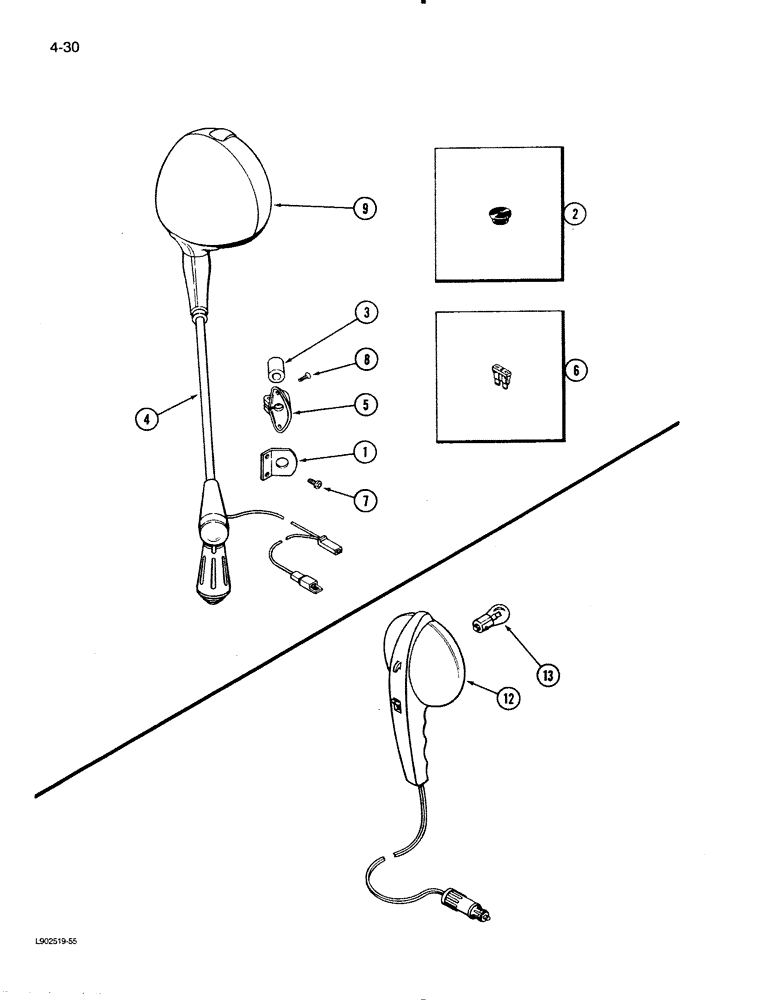

Схема запчастей Case IH 1620 - (4-30) - CAB MOUNTED SPOTLIGHT (06) - ELECTRICAL
2
1
5
3
7
12
4
8
13
9
6

Артикул

Название

Примечание

Количество

1323590C91

LAMP BASE

LIGHT ATTACHMENT - spotlight, Includes: Ref. 1 - 9

1шт.

1

1329859C1

BRACKET

- spotlight

1шт.

2

1330144C1

GROMMET

- mounting

1шт.

3

1330145C1

BUSHING

- pivot

1шт.

4

91938C1

INTERIOR LIGHT

SPOTLIGHT ASSEMBLY - cab

1шт.

5

92015C1

BRACKET

- spotlight

1шт.

6

A149798

FUSE

- 5 ampere

1шт.

6

A149799

FUSE

- 7.5 ampere (Brown)

1шт.

7

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self tapping, No. 10 NC x 3/8 inch

2шт.

8

27073R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - tapping, No. 10 x 1/2 inch

2шт.

9

28753R1

LIGHT

LAMP - seal beam, No. 7604

1шт.

12

1312876C1

LAMP

SPOTLIGHT ASSEMBLY - hand held, Includes: Ref. 13

1шт.

13

3131227R1

BULB,P25-1, 12V, 21W

Hand held P25-1, 12V, 21W

1шт.

Выбрано товаров: 13
