Запчасти Case IH 1620 (4-28) - GRAIN TANK LIGHT (06) - ELECTRICAL

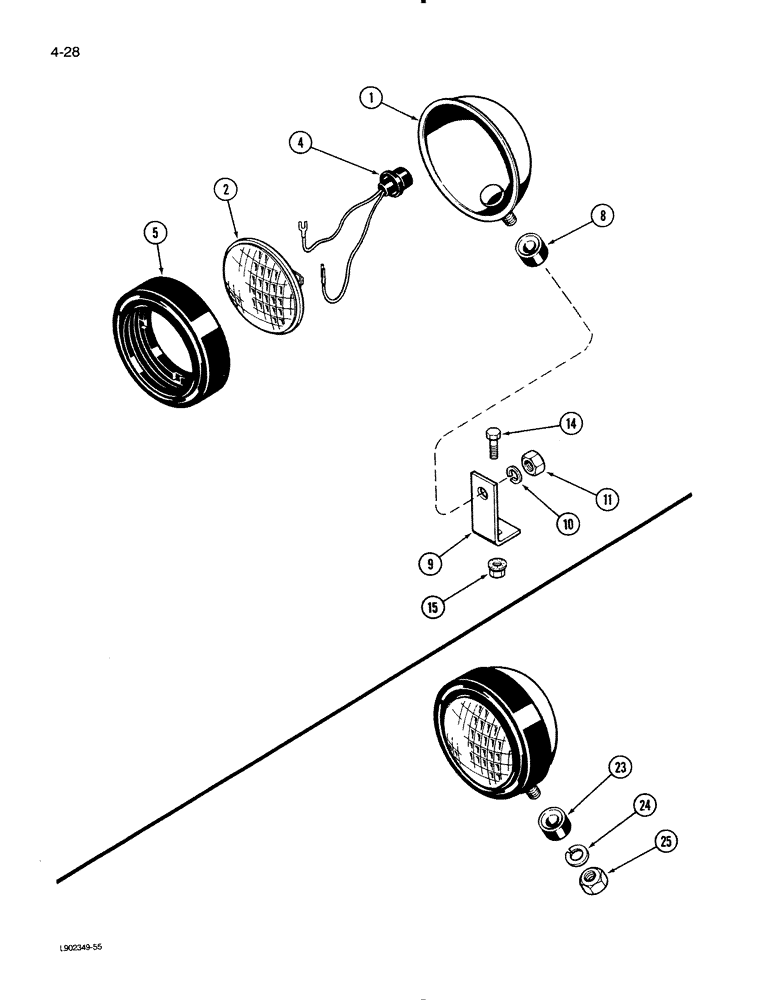

Схема запчастей Case IH 1620 - (4-28) - GRAIN TANK LIGHT (06) - ELECTRICAL
10
9
1
2
4
15
8
14
11
5

Артикул

Название

Примечание

Количество

245954C91

LAMP

LIGHT ASSEMBLY - grain tank and unloader, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - light (Order 245954C91)

1шт.

2

A42294

SEALED BEAM UNIT

LAMP - No. 4406

1шт.

4

530029R91

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - light

1шт.

5

676078R1

RETAINER

- shockproof (For use with Hobbs light)

1шт.

5

1252609C1

RETAINER

- shockproof (For use with Midwest light)

1шт.

8

1267358C2

SEAT

- light mounting

1шт.

9

1317942C1

BRACKET

- grain tank light

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

14

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

1шт.

15

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

1шт.

245954C91

LAMP

LIGHT ASSEMBLY - grain tank and unloader

1шт.

See grain tank light above for repair parts.

1шт.

23

1267358C2

SEAT

- light mounting, unloader

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Unloader light 1/2"

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Unloader light 1/2"-13, G5

1шт.

Выбрано товаров: 17
