(4-20) - REAR LIGHTS AND FUEL SENDER HARNESS

Запчасти Case IH 1620 (4-20) - REAR LIGHTS AND FUEL SENDER HARNESS (06) - ELECTRICAL

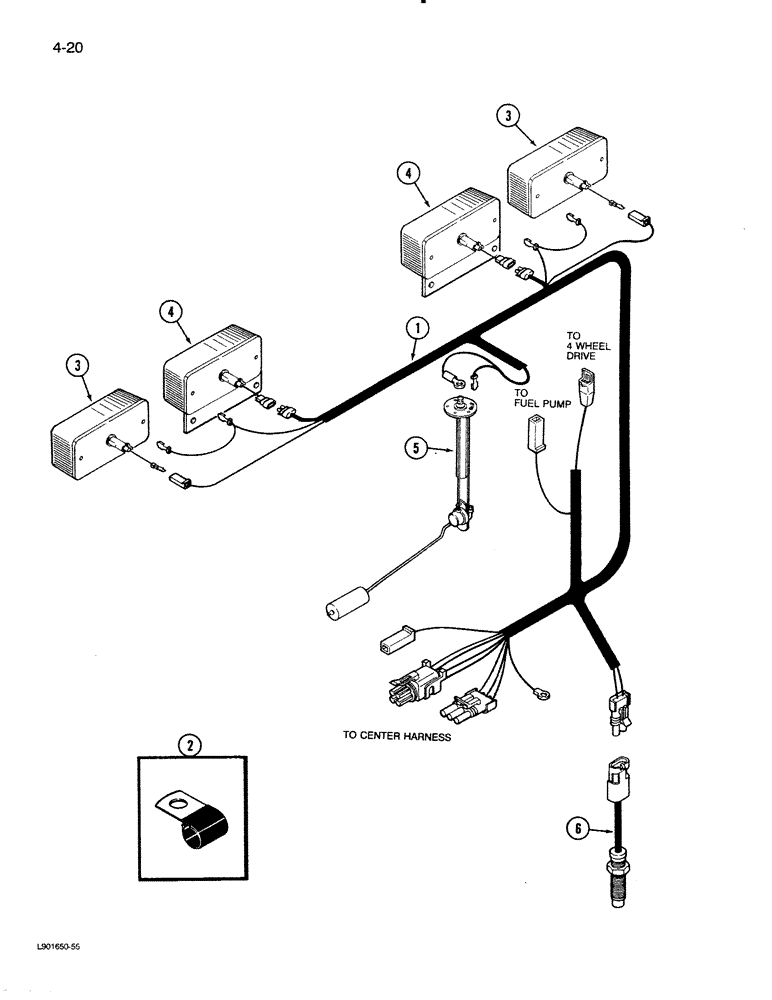

Схема запчастей Case IH 1620 - (4-20) - REAR LIGHTS AND FUEL SENDER HARNESS (06) - ELECTRICAL
5
6
4
3
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1983342C2

HARNESS

ASSEMBLY - rear main

1шт.

2

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - retaining

1шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - warning rear (See Figure 4-32)

2шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Figure 4-32)

2шт.

5

REF

INSTRUCTION

GAUGE - fuel level sending unit (See Figure 3-14)

1шт.

6

1252494C2

TRANSMITTER

SENSOR - transducer, engine RPM

1шт.
