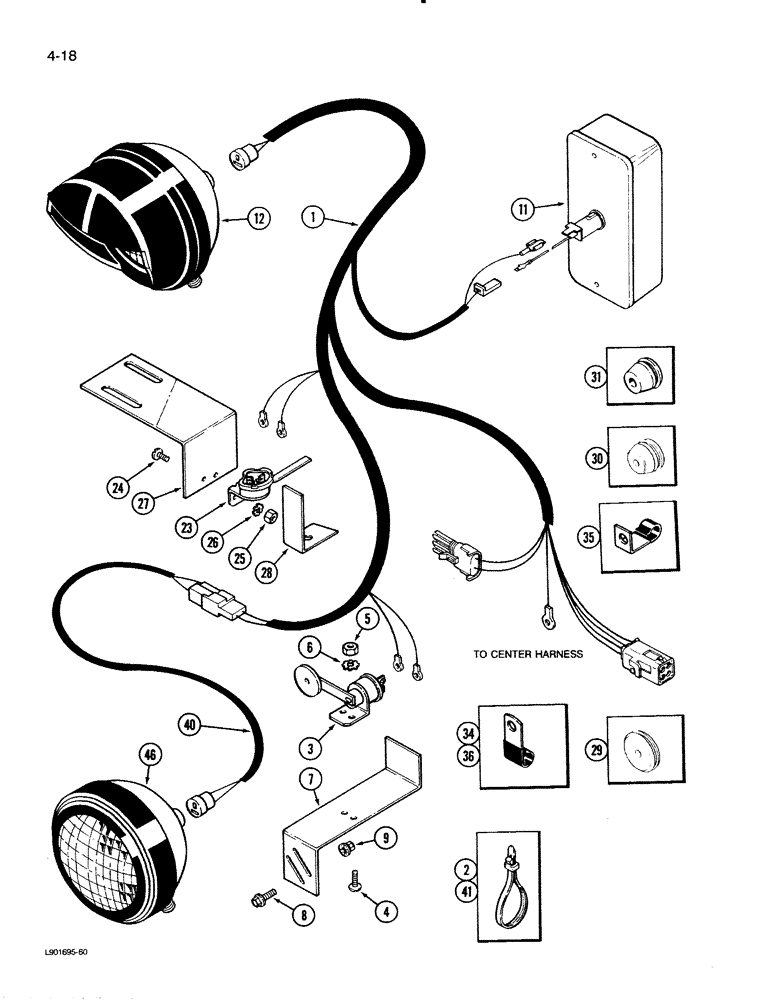

Запчасти Case IH 1620 (4-18) - GRAIN TANK HARNESS (06) - ELECTRICAL

1

245243C3

HARNESS

ASSEMBLY - grain tank

1шт.

2

702093C1

CABLE TIE

STRAP - cable retaining

1шт.

3

91436C3

SWITCH

- unloader in

1шт.

4

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips head, No. 10 NC x 3/4 inch

2шт.

5

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

2шт.

6

178383

WASHER,Tooth, 0.20" ID x 0.68" OD, Steel, ZND

WASHER - internal/external lock, No. 10

2шт.

7

1338022C1

SUPPORT

BRACKET - unloader in switch

1шт.

8

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- flanged hex lock, 1/4 NC x 3/4 inch

2шт.

9

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flanged hex lock, 1/4 inch NC

2шт.

11

REF

INSTRUCTION

LAMP ASSEMBLY - warning, right front (See Figure 4-32)

1шт.

12

REF

INSTRUCTION

LAMP ASSEMBLY - grain tank (See Figure 4-28)

1шт.

23

537641R2

SWITCH ASSY

SWITCH - unloader out

1шт.

24

21866R1

SNAP RING,1.378", Int, #137

SCREW - pan head machine, No. 10 x 1/2 inch

2шт.

25

115999

NUT,#10-32

- hex machine, No. 10 NF

2шт.

26

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER - internal/external lock, No. 10

2шт.

27

1338003C1

BRACKET

SUPPORT - unloader limit switch out

1шт.

28

1338005C1

BAR

- unloader limit switch out

1шт.

29

195803C1

GROMMET

- grain bin

2шт.

30

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- grain bin

1шт.

34

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness, 1-1/2 inch long x 13/32 inch hole

8шт.

35

370383R1

CLIP

- harness, 1-1/2 inch long x 15/32 inch hole

6шт.

36

362123R1

CLIP

- harness, 1-7/8 inch long x 15/32 inch hole

3шт.

40

91828C1

HARNESS

ASSEMBLY - unloader light

1шт.

41

702093C1

CABLE TIE

STRAP - harness retainer, unloader light

1шт.

46

REF

INSTRUCTION

LAMP ASSEMBLY - unloader (See Figure 4-28), harness

1шт.
