Запчасти Case IH 1620 (4-16) - POWER BOOST MONITOR (06) - ELECTRICAL

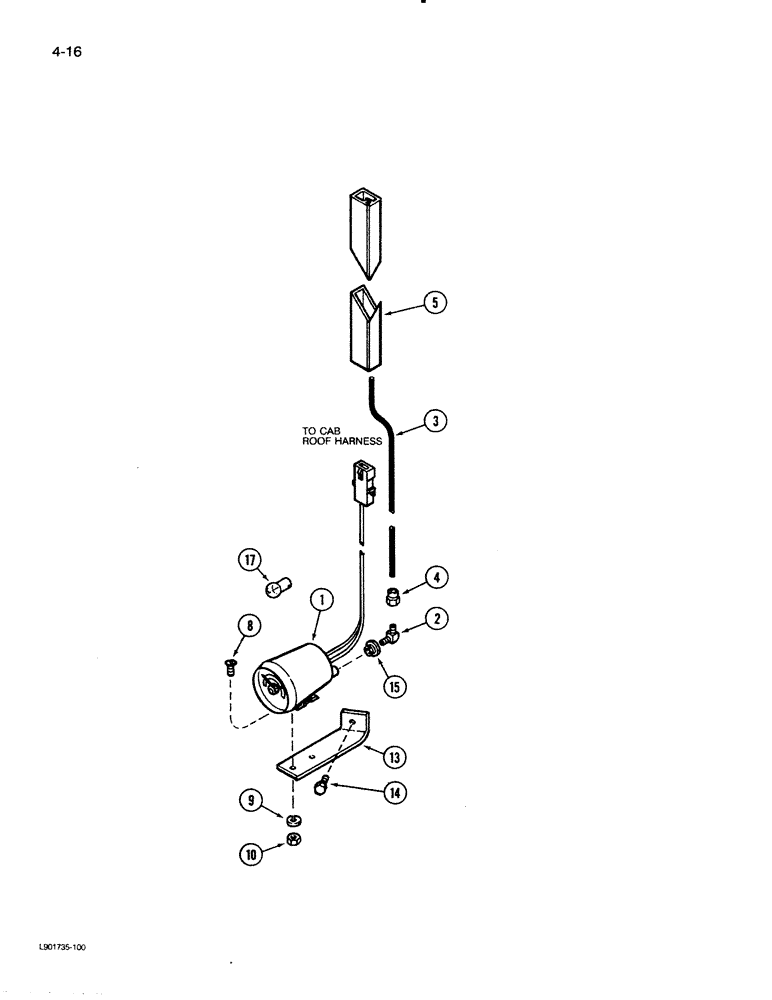

Схема запчастей Case IH 1620 - (4-16) - POWER BOOST MONITOR (06) - ELECTRICAL
4
9
15
1
3
5
2
17
14
8
10
13

Артикул

Название

Примечание

Количество

1

1977144C3

GAUGE ASSY.

MONITOR - power boost, 30 PSI

1шт.

2

222-5115

ELBOW,90 Degree, 5/16"-24 x 1/8" NPTF

- 90 degree, 1/8 inch PT

2шт.

3

NSS

NOT SOLD SEPARAT

TUBE - engine to monitor, 204 inch long (Order 1954063C1, Serial Range: cut-length)

1шт.

4

1977102C1

FITTING

CONNECTOR - tube retaining

1шт.

5

1977142C1

CONDUIT

- harness and tubing

1шт.

8

134229

SCREW,Slotted Oval Hd, #8-32 x 5/8"

- oval head slotted, No. 8-32 x 5/8 inch

2шт.

9

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

10

115998

NUT,#8-32

NUT, #8-32

2шт.

13

1979103C2

ANGLE

BRACKET - monitor support

1шт.

14

25653R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- hex, 5/16 NC x 1/2 inch

1шт.

15

221-87

REDUCER,1/2" NPT x 1/8" NPT

- 1/2 to 1/8 inch PT

1шт.

1979215C1

TAPE

- adhesive (Not Shown)

1шт.

17

28791R1

BULB

- monitor

1шт.

Выбрано товаров: 13
