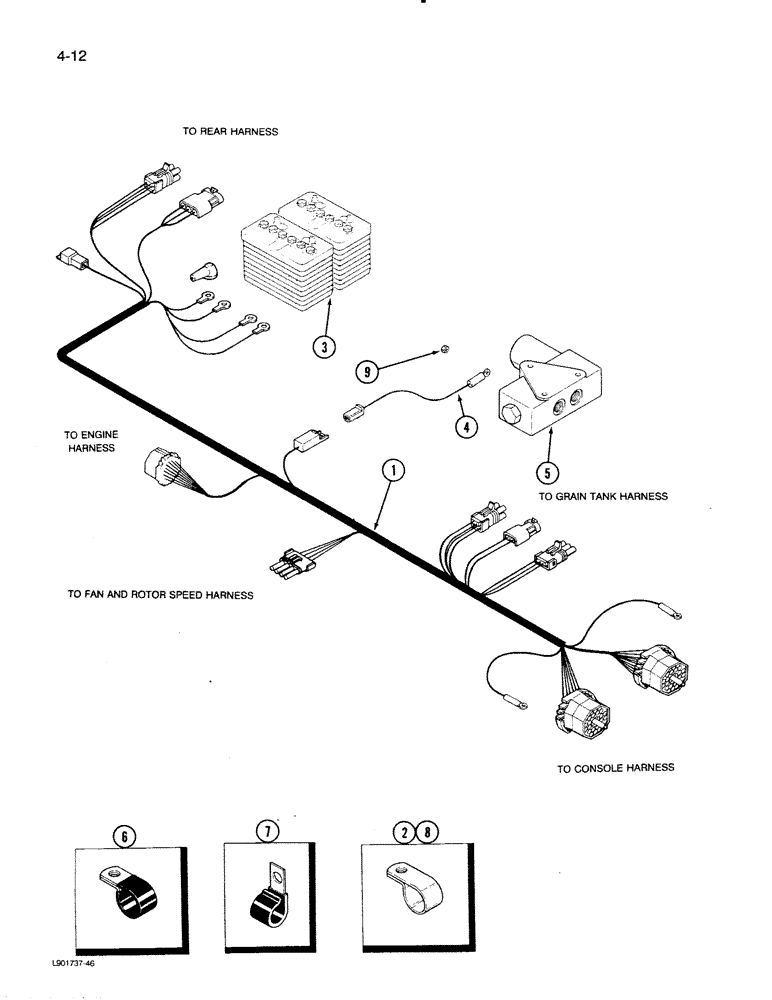

Запчасти Case IH 1620 (4-12) - CENTER HARNESS (06) - ELECTRICAL

1

1983382C1

HARNESS

ASSEMBLY - center

1шт.

2

1300542C1

CLAMP,1 3/8", 5/16" Bolt

CLIP - center harness

5шт.

3

REF

INSTRUCTION

BATTERY - dry charged, 12 volt (See figure 4-52)

2шт.

4

187736C1

CABLE

- separator clutch valve (Control concepts)

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - separator (Control concepts) (See Figure 8-28)

1шт.

6

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

CLIP - harness

6шт.

7

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness

1шт.

8

1300542C1

CLAMP,1 3/8", 5/16" Bolt

CLIP - harness

3шт.

9

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.
