Запчасти Case IH 1620 (4-10) - CAB ROOF HARNESS (06) - ELECTRICAL

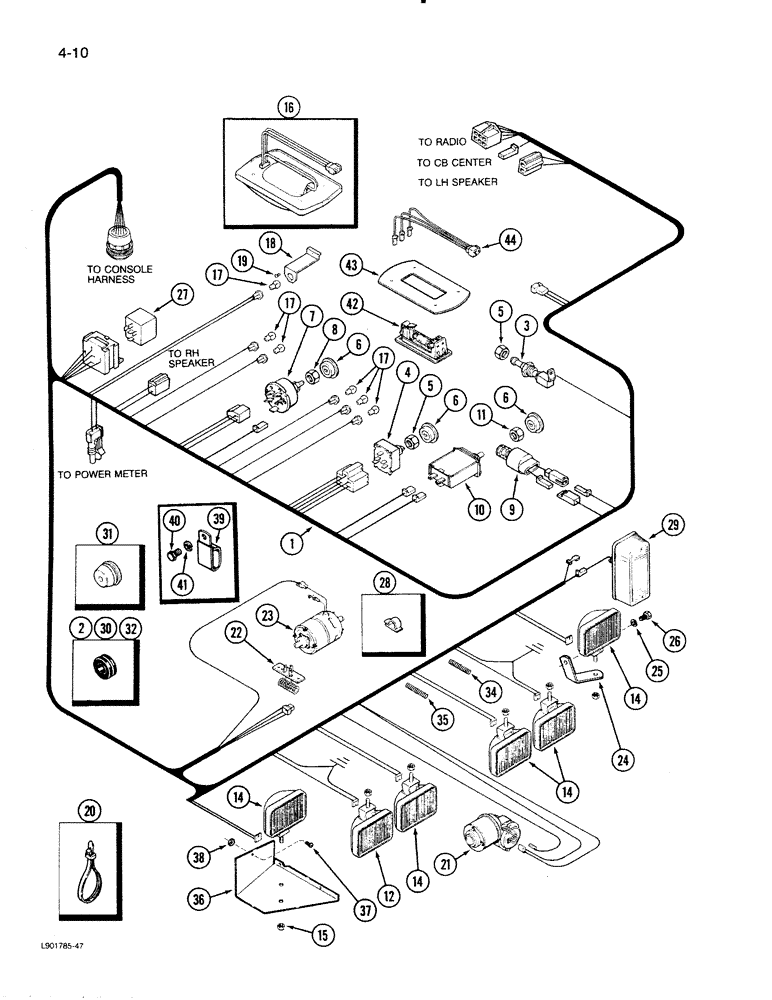

Схема запчастей Case IH 1620 - (4-10) - CAB ROOF HARNESS (06) - ELECTRICAL
6
9
4
24
14
19
14
25
5
17
15
32
34
2
30
14
17
8
35
38
31
40
44
16
6
28
6
3
42
10
5
21
20
37
11
29
22
43
23
1
17
39
7
36
12
18
14
26
27
41

Артикул

Название

Примечание

Количество

1

84311C5

HARNESS

ASSEMBLY - cab roof

1шт.

2

3063674R1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome light control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex jam

1шт.

6

111282C1

KNOB

- blower, wiper and thermostat switch

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex jam

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex jam

2шт.

12

91666C91

INTERIOR LIGHT

LAMP ASSEMBLY - headlight (40 x 7 Halogen flood)

1шт.

14

245897C91

LAMP, WORK

LIGHT ASSEMBLY - work light and outer flood light

5шт.

15

118617

NUT,1/2"-13, G5

- hex jam, 1/2 inch NC

6шт.

16

REF

INSTRUCTION

LIGHT ASSEMBLY - dome (See figure 4-34)

1шт.

17

A14553

BULB

- lamp, No. 57

5шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

5шт.

19

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

5шт.

20

111619C1

STRAP

- cable retaining

6шт.

21

1276130C92

WIPER MOTOR

WIPER ASSEMBLY - (See Figure 4-64)

1шт.

22

1255876C1

RESISTOR

ASSEMBLY - blower

1шт.

23

142990C2

MOTOR, ELECTRIC

MOTOR - blower, 12 volt, DC, PM

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1620 w/S/N JJC0032630 & Aft., Reman For New P/N's 142990C2 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1281876C1

BRACKET

ANGLE - light support left

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

26

24859R1

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

1шт.

27

1-7877

RELAY

- electrical, air conditioning

1шт.

28

169850C1

CLIP

- harness (plastic)

6шт.

29

130882C91

LAMP

LAMP ASSEMBLY - warning (See Figure 4-32)

1шт.

30

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- deck harness, right

1шт.

30

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- light harness, right

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- light harness, left

1шт.

34

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 7 inch (Order R43250, Serial Range: cut-length)

2шт.

35

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 9 inch (Order R43250, Serial Range: cut-length)

2шт.

R43250

CONDUIT

- bulk, 50 foot roll

1шт.

36

1283449C3

BRACKET

ANGLE - light shield and mounting bracket right

1шт.

37

436746

SCREW

- pan head, No. 10 NF x 1/4 inch

2шт.

38

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

1шт.

39

371036R1

CLIP

- harness

1шт.

40

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

42

REF

INSTRUCTION

LAMP ASSEMBLY - dome (See figure 4-34)

1шт.

43

1979628C1

LARGE PLATE

PLATE - dome light

1шт.

44

1983386C1

HARNESS

- dome light adapter

1шт.

Выбрано товаров: 46
